Well Control System Components: A Technical Overview

A Well Control System is an integrated assembly of equipment, tools, and procedures designed to monitor, prevent, and control the pressure within an oil or gas well. Its core purpose is to maintain pressure balance, preventing the uncontrolled flow of formation fluids (kick) from becoming a blowout, thereby ensuring operational safety.

A complete system typically consists of the following key parts:

---

1. Primary Equipment Components (Hardware)

A. Blowout Preventer Stack

This is the core physical barrier, mounted on top of the wellhead.

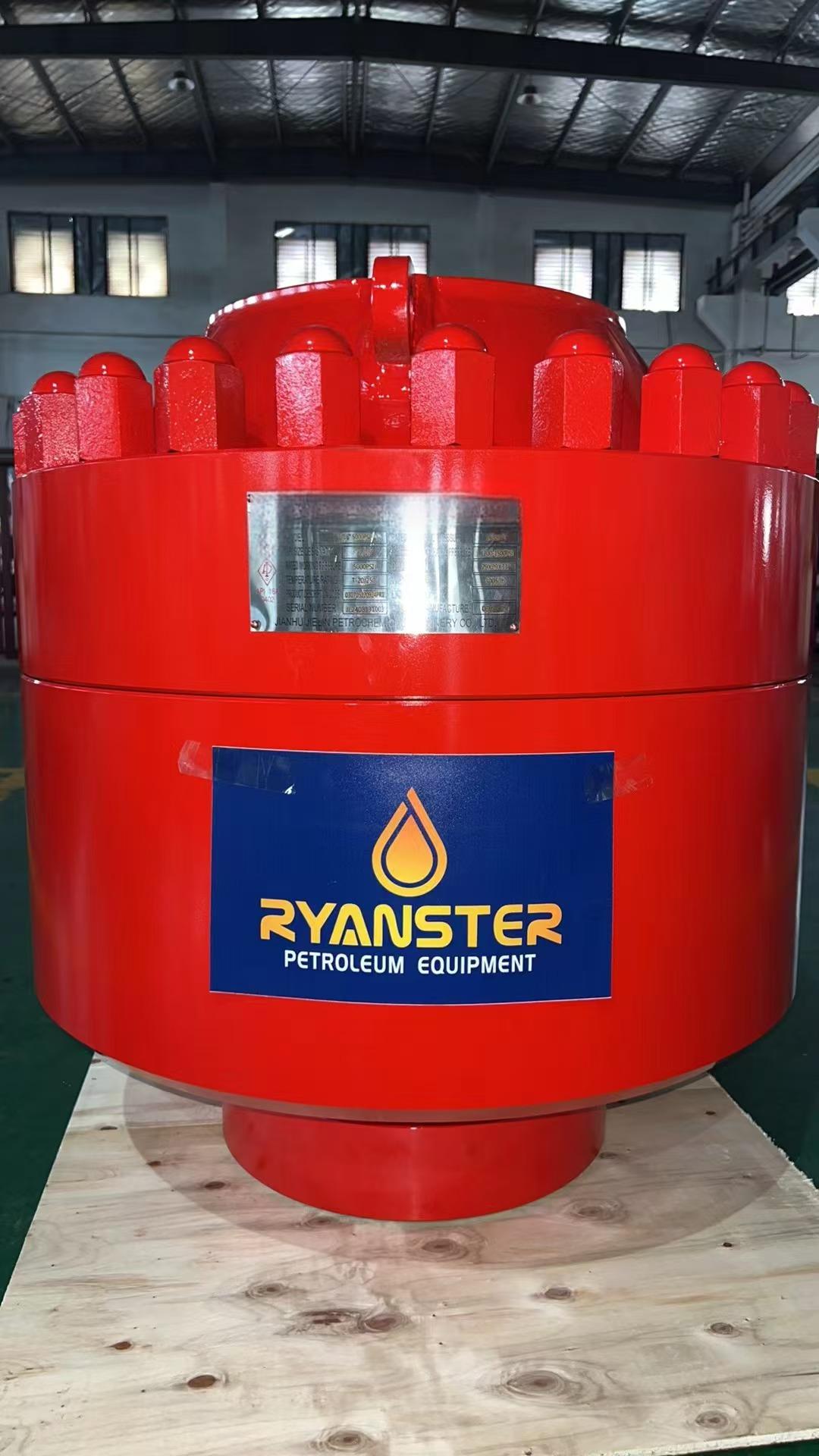

· Annular Bop : Can seal around various pipe shapes (drill pipe, kelly) or even an open hole. Often used for initial closure in low-pressure or emergency situations.

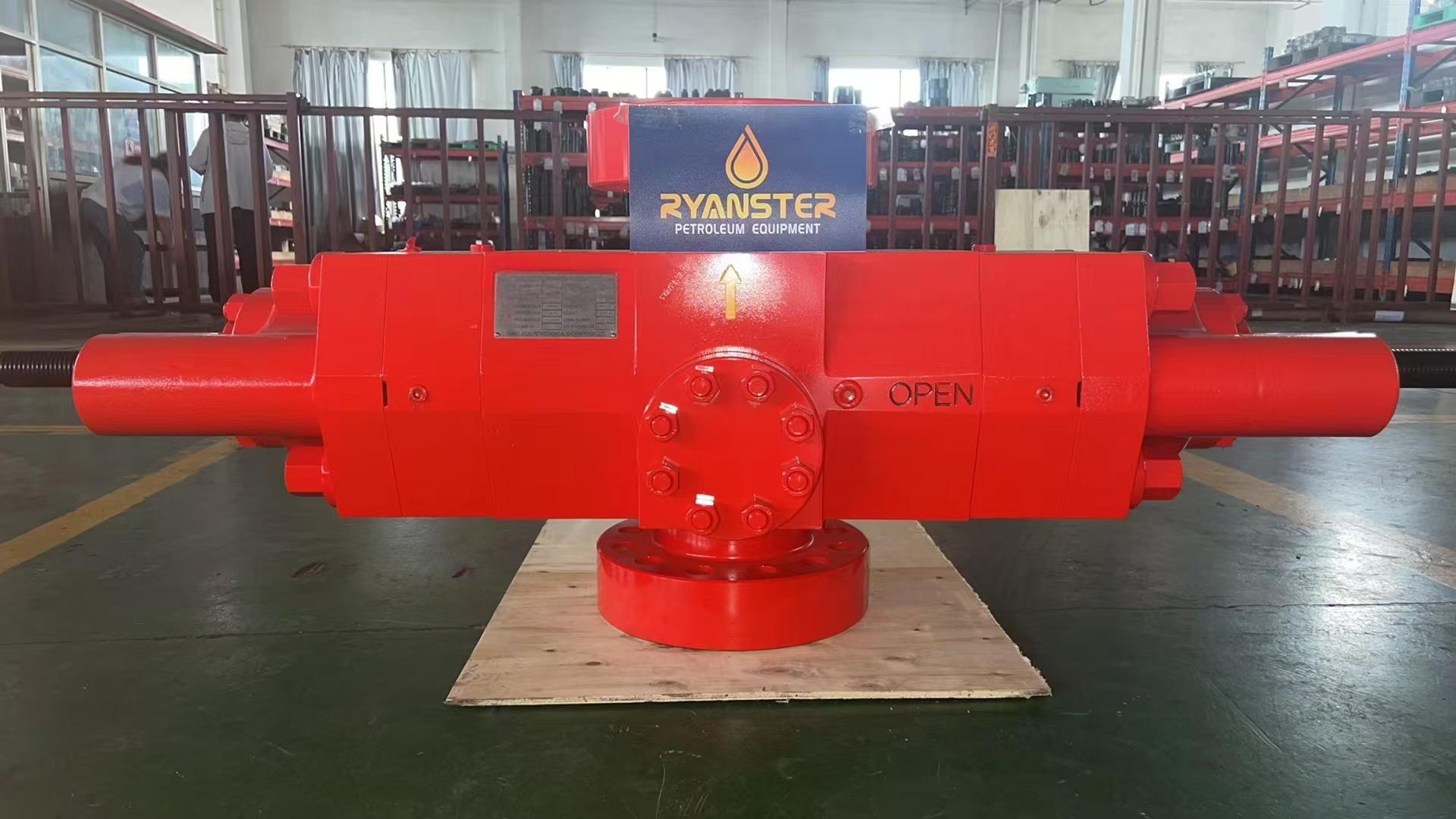

· Ram Bop: Usually installed in a set. Include:

  · Blind/Shear Rams: Can seal an open hole. Shear Rams are designed to cut through the drill pipe and then seal the wellbore in extreme emergencies.

  · Pipe Rams: Close and seal around a specific size of drill pipe body.

  · Variable Bore Rams: Can adapt to seal around a range of pipe sizes.

B. Wellhead & Casing head

The foundation that supports the entire BOP stack and casing strings,providing a pressure-tight transition from the formation to surface equipment.

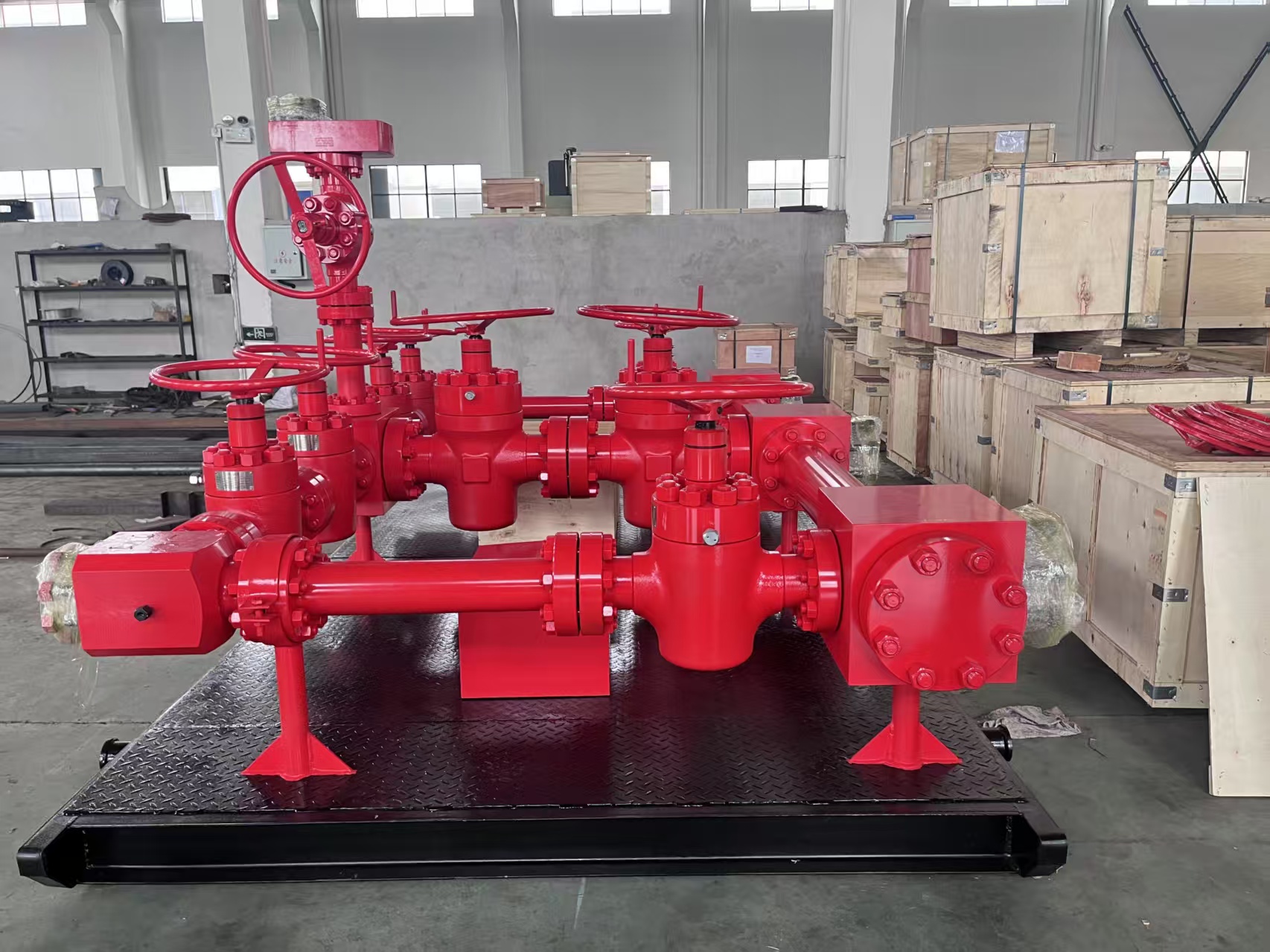

C. Choke & Kill Manifold

· Choke Manifold: Connected to the side outlet of the BOP stack. After a kick is detected and the BOP  are closed, it allows controlled flow from the well through an adjustable choke valve to apply back pressure during kill operations.

· Kill Manifold: Used to pump high-density drilling fluid (kill mud) into the wellbore to restore pressure balance.
