Basic Info

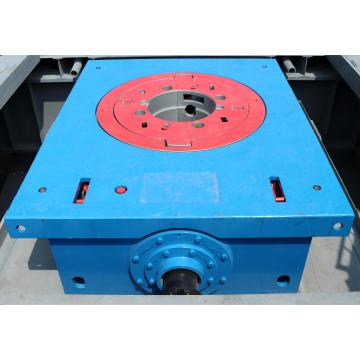

Model No.: Rotary Table
Brand: RYANSTER
Product Description
• The transmission of Rotary Table adopts spiral bevel gears which have strong bearing capacity, smooth operation and long service life.
• The shell of rotary table uses cast-weld structure with good rigidity and high precision.
• The gears and bearings adopt reliable splash lubrication.
• The barrel type structure of the input shaft is easy to repair and replace.
Technical Parameters:
| Model | ZP175 | ZP205 | ZP275 | ZP375 | ZP375Z | ZP495 | ZP650Y |
|
Dia. of opening, mm(in) | 444.5 (17 1/2) | 520.7 (20 1/2) | 698.5 (27 1/2) | 952.5 (37 1/2) | 952.5 (37 1/2) | 1257.3 (49 1/2) | 1536.7 (60 1/2) |
| Rated static load, kN(kips) | 2700 (607.0) | 3150 (708.1) | 4500 (1011.6) | 5850 (1315.1) | 7250 (1629.9) | 9000 (2023.3) | 11250 (2529.1) |
| Max.working torque, N.m (ft.lb) | 13729 (10127) | 22555 (16637) | 27459 (6173) | 32362 (20254) | 45000 (33192) | 64400 (47501) | 70000 (1574) |
| Distance from RT center to that of inner row sprocket, mm(in) | 1118 (44) | 1353 (53 1/4) | 1353 (53 1/4) | 1353 (53 1/4) | 1353 (53 1/4) | 1651 (65) | ---- |
| Gear ratio | 3.75 | 3.22 | 3.67 | 3.56 | 3.62 | 4.0883 | 3.97 |
| Max. Speed, r/min | 300 | 300 | 300 | 300 | 300 | 300 | 20 |
| Input shaft center height, mm(in) | 260.4(10.3) | 318(12.5) | 330(13.0) | 330(13.0) | 330(13.0) | 368(14.5) | ---- |
| Overall dimension, mm(in) (L×W×H) | 1972×1372×566 (77.6×54.0×22.3) | 2266×1475×704 (89.2×58.1×27.7) | 2380×1475×690 (93.7×58.1×27.2) | 2468×1920×718 (97.2×75.6×28.3) | 2468×1810×718 (97.2×71.3×28.3) | 3015×2254×819 (118.7×88.7×32.2) | 3215×2635×965 (126.6×103.7×38.0) |
| Net weight (including master bushing and excluding chain sprocket), kg(lbs) | 4172 (9198) | 5662 (12483) | 6122 (13497) | 7970 (17571) | 9540 (21032) | 11260 (24824) | 27244 (60063) |
Product Categories : Wellhead Tool > Rotary Table
