Wellhead Type MP Safety Clamps
Wellhead Type MP Safety Clamps
Wellhead Type MP Safety Clamps
Wellhead Type MP Safety Clamps
Wellhead Type MP Safety Clamps
Wellhead Type MP Safety Clamps
Wellhead Type MP Safety Clamps
  • Wellhead Type MP Safety Clamps
  • Wellhead Type MP Safety Clamps
  • Wellhead Type MP Safety Clamps
  • Wellhead Type MP Safety Clamps
  • Wellhead Type MP Safety Clamps
  • Wellhead Type MP Safety Clamps
  • Wellhead Type MP Safety Clamps

Wellhead Type MP Safety Clamps

    Payment Type: L/C,T/T
    Incoterm: FOB,CIF,EXW,FAS
    Min. Order: 1 Set/Sets

Basic Info

Model No.MP-S/MP-R/MP-M/MP-L/MP-XL Safety Clamps

BrandRYANSTER

Additional Info

PackagingWooden Box

TransportationOcean,Land,Express,Air

CertificateISO 9001:2000, API 7K

HS Code8431431000

Payment TypeL/C,T/T

IncotermFOB,CIF,EXW,FAS

Product Description

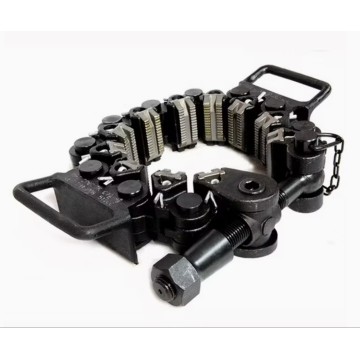

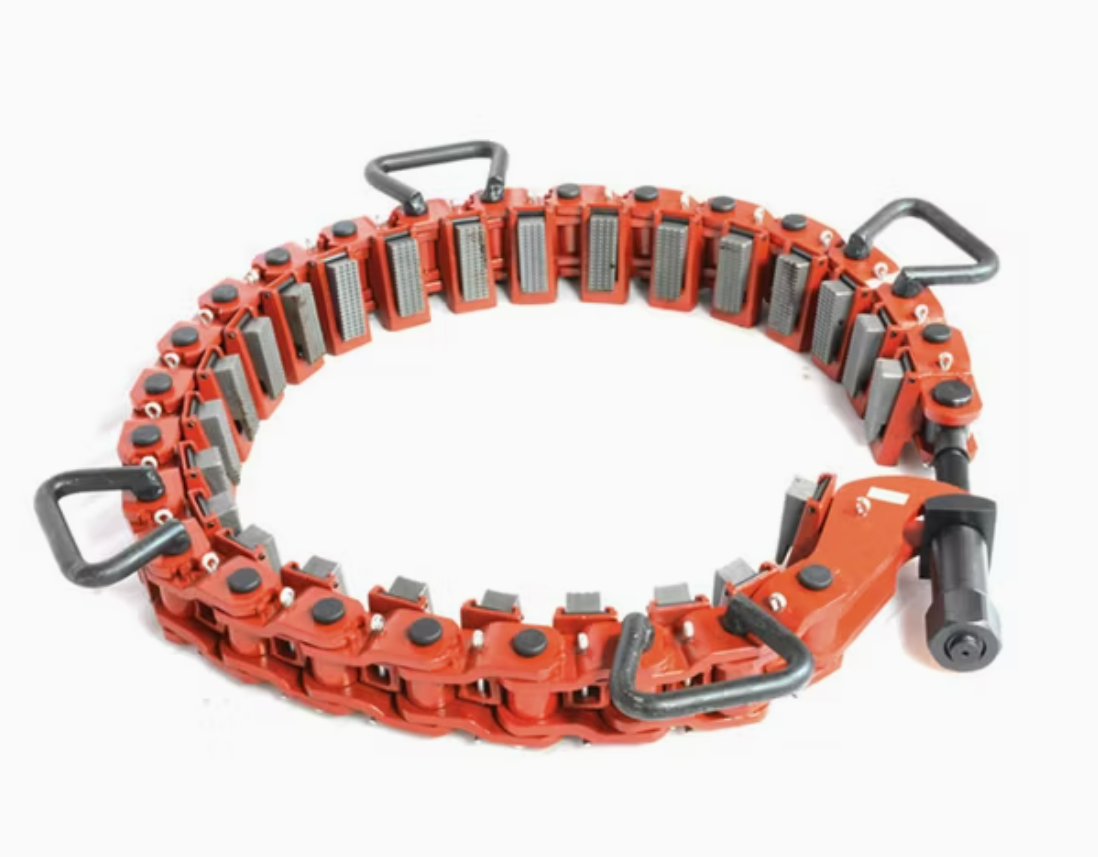

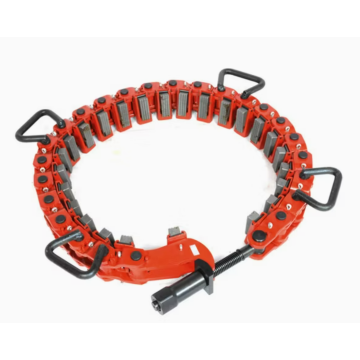

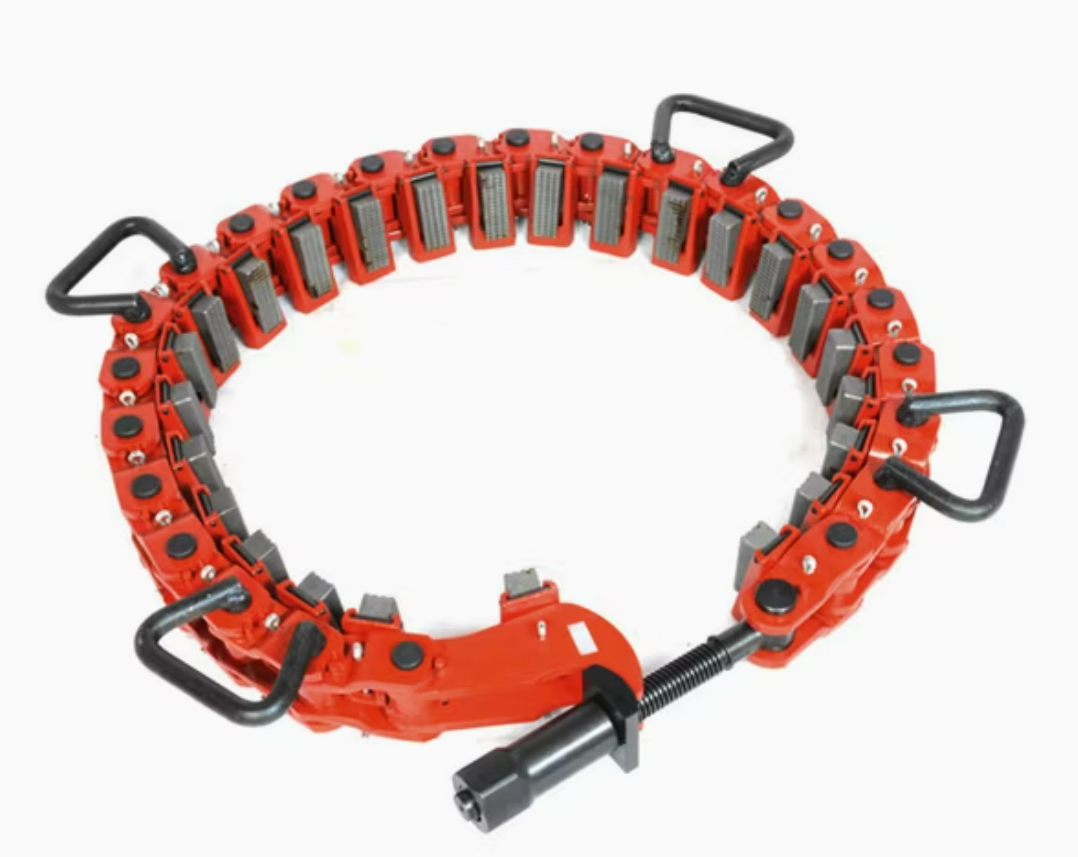

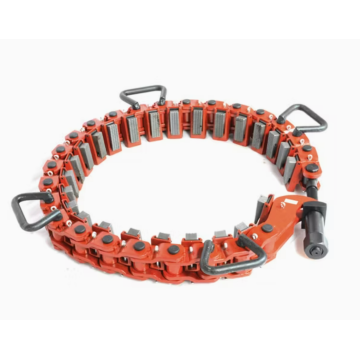

-Type MP Safety Clamp-

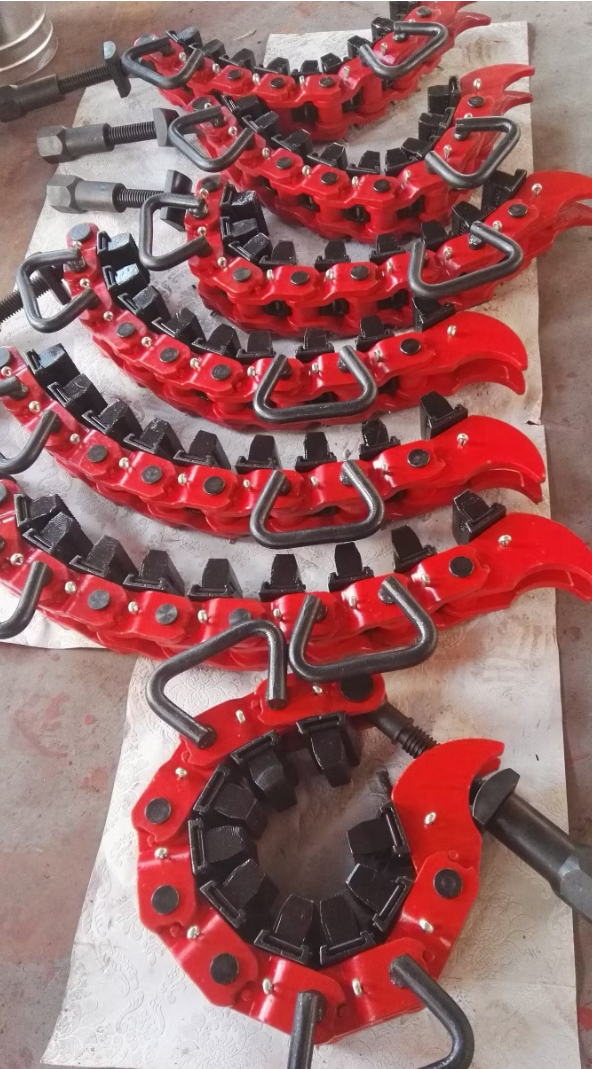

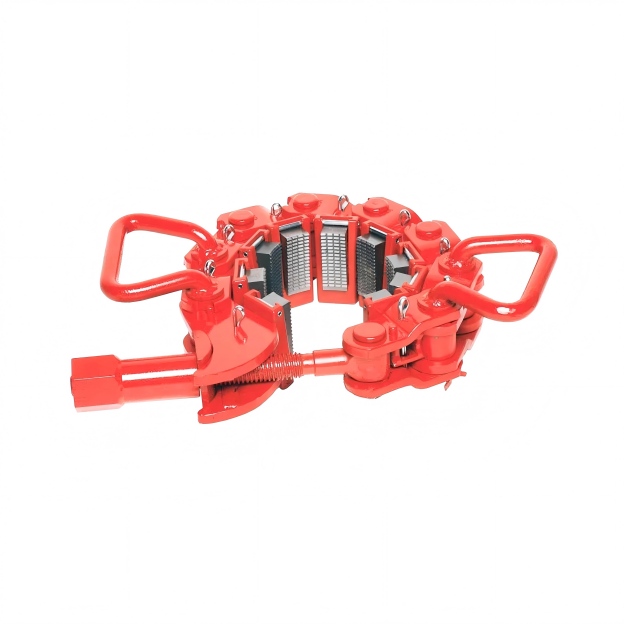

The Safety Clamp consists of individual links, flexibly hinged together. Each link has a separate tapered slip which acts as a gripping member, much like a tapered rotary slip, and each slip is held in a retracted position on the taper by spring tension. When the clamp is tightened, each small slip take a firm initial grip on the surface of the pipe. Should the pipe start to fall, or should load increase occur against the slips, the taper mounting causes each slip to wedge tighter against the surface of the pipe to increase the grip or lock the pipe against further movement.

Gripping pressure is always uniform around the pipe so there is little danger of crushing thin-walled pipe or damaging the pipe surface. And, since each link, complete with tapered slip, is interchangeable as a unit, the Safety Clamp is readily adaptable to virtually any diameter. Each link changes the effective gripping diameter of the clamp one inch. All parts are made of alloy steel, heat-treated for strength and gripping ability.


Safety Clamps Type MP are necessary tools for handling drill collars,flush joint pipes and small shoulder pipes. They could adjust pipes of different sizes by changing the quantity of chain links. They are designed and manufactured according to API Spec 7K Specification for rilling and well servicing equipment.

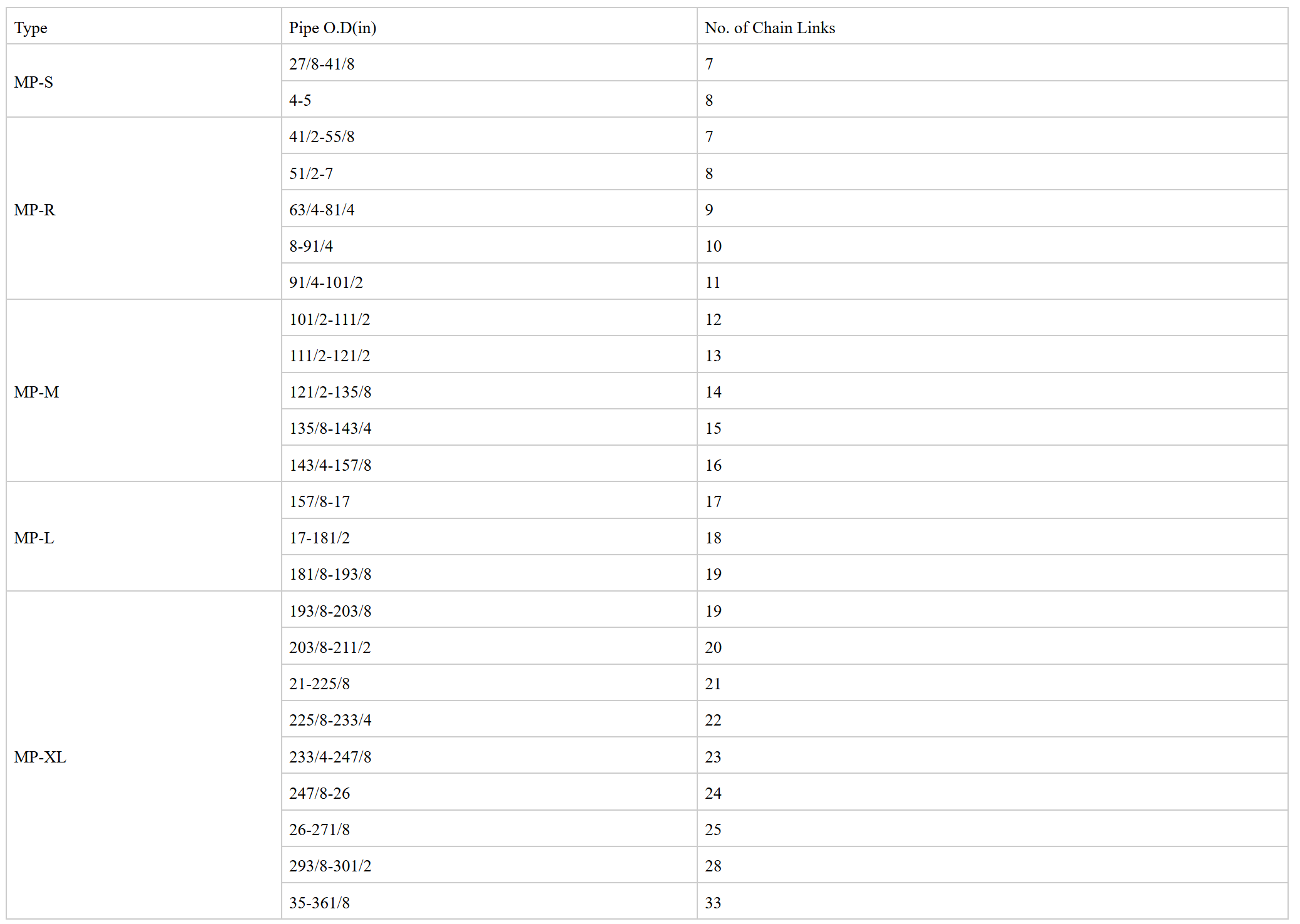

Safety Clamps could adjust pipes to different sizes by changing the quantity of chain links, can accommodate pipes from 1.1/8 to 4.1/2inch.

There are three types of safety clamps: Type WA-T, WA-C and type MP.

667f8976-8ec6-4db7-ade1-86e5911aaf8e


The key features of the Safety Clamps Type MP include a sturdy construction made from high-grade materials that resist corrosion and wear, ensuring long-term reliability. The design incorporates precision engineering to allow for easy installation and removal, reducing downtime and increasing productivity. Additionally, these clamps are equipped with advanced locking mechanisms that prevent accidental disengagement, providing an extra layer of safety for operators. Their compatibility with a wide range of wellhead configurations makes them a versatile option suitable for various applications across different environments.

When it comes to detailed functionality, the Wellhead Type MP Safety Clamp is built to withstand extreme pressures and temperatures commonly encountered in oil and gas operations. The clamping mechanism is designed to distribute force evenly, minimizing the risk of damage to the wellhead and associated equipment. This even distribution also enhances stability, which is crucial when handling heavy loads or operating in challenging terrains. The clamps are also designed with user-friendly handles and adjustable components, allowing for smooth operation even in tight spaces or under time constraints.

The application of these Safety Clamps Type MP spans multiple sectors within the energy industry. They are widely used in drilling rigs, workover units, and production facilities where wellhead control is critical. In addition, they play a vital role in well testing, pressure testing, and other related procedures that require secure and stable connections. Their adaptability makes them ideal for both new installations and retrofitting existing systems, offering a cost-effective solution without compromising on quality or safety.

For those considering the purchase of a Safety Clamps Type MP, it's important to understand how these products fit into the broader context of wellhead management. They are not just tools but integral parts of a comprehensive safety strategy. When selecting a product, factors such as material quality, design specifications, and compatibility with existing systems should be carefully evaluated. Ensuring that the chosen clamps meet industry standards and are suited to the specific requirements of the operation will help maximize their effectiveness and longevity.
