Home > Products > Shale Shaker Screen > Steel frame shale shaker screen





View the big picture

Steel frame shale shaker screen

Payment Type:	T/T,L/C
Incoterm:	FOB,CIF,EXW,FAS
Min. Order:	1 Set/Sets

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: API Steel Frame Shale Shaker Screen

Brand: RYANSTER

Origin: China

Certification: CE, ISO 9001:2000, API

Additional Info

Packaging: Wooden Box

Transportation: Ocean,Land

Place of Origin: China

Certificate: CE, ISO 9001:2000, API

HS Code: 8474900000

Payment Type: T/T,L/C

Incoterm: FOB,CIF,EXW,FAS

Product Description

Product Description

The petroleum vibrating screen is a crucial solid control equipment used in petroleum drilling to separate drilling fluid from drill cuttings. Its core function lies in enhancing the cleanliness of the drilling fluid through vibrating screening, thereby ensuring the drilling efficiency and safety. During the petroleum extraction process, just like the Mud Pump, the control of solid phases in the drilling fluid is of vital importance to the drilling efficiency and the lifespan of the equipment. The petroleum vibrating screen mesh, as the first checkpoint of the solid control system, its performance directly determines the purification effect of the mud and the drilling cost. Together with the pressure control equipment and the Drill String, it ensures the safety and efficiency of the drilling process.

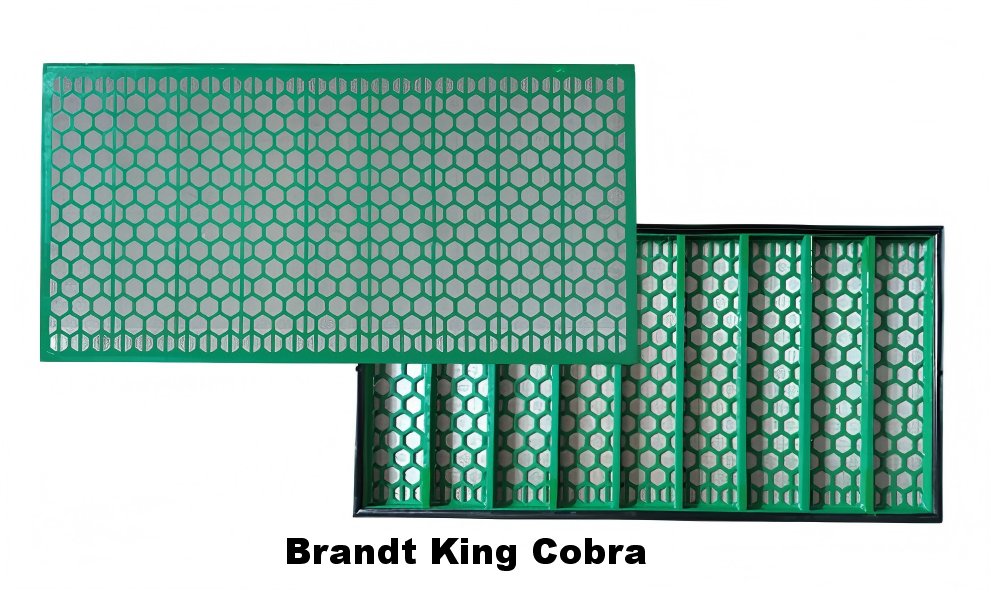

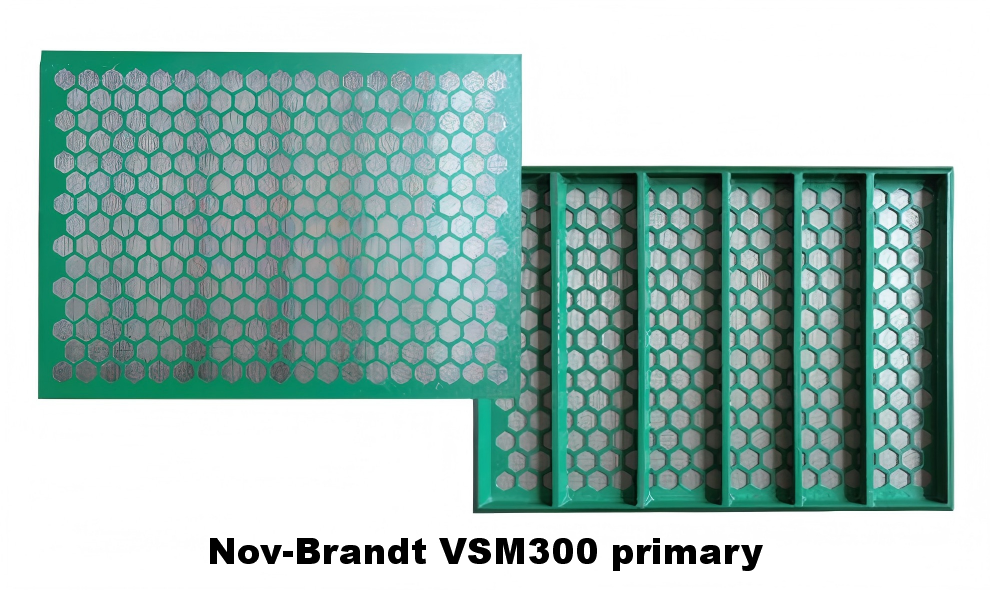

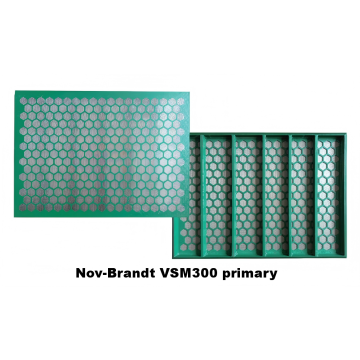

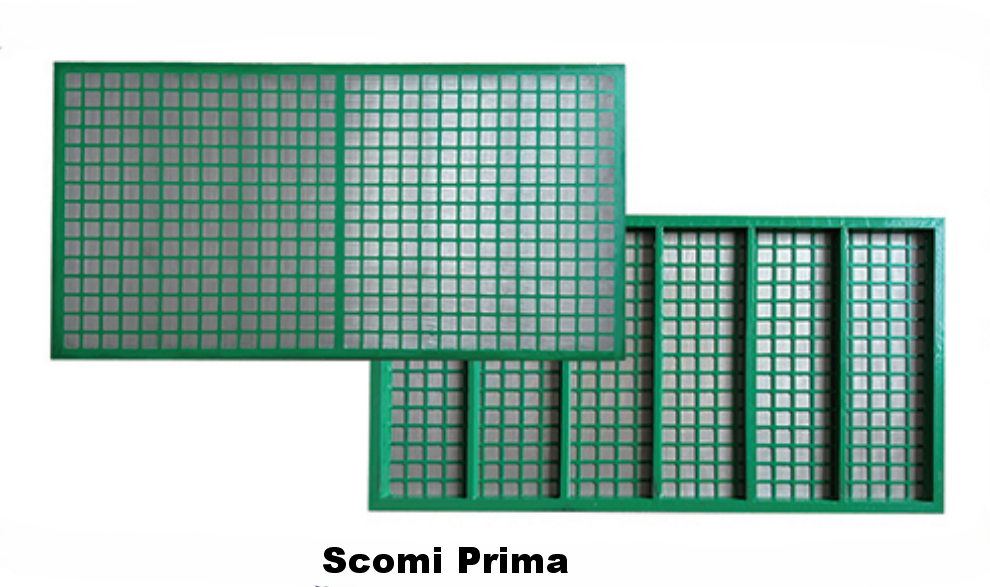

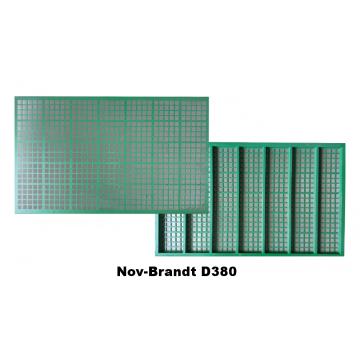

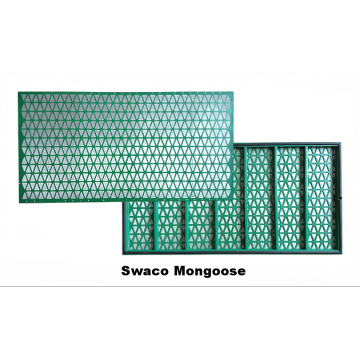

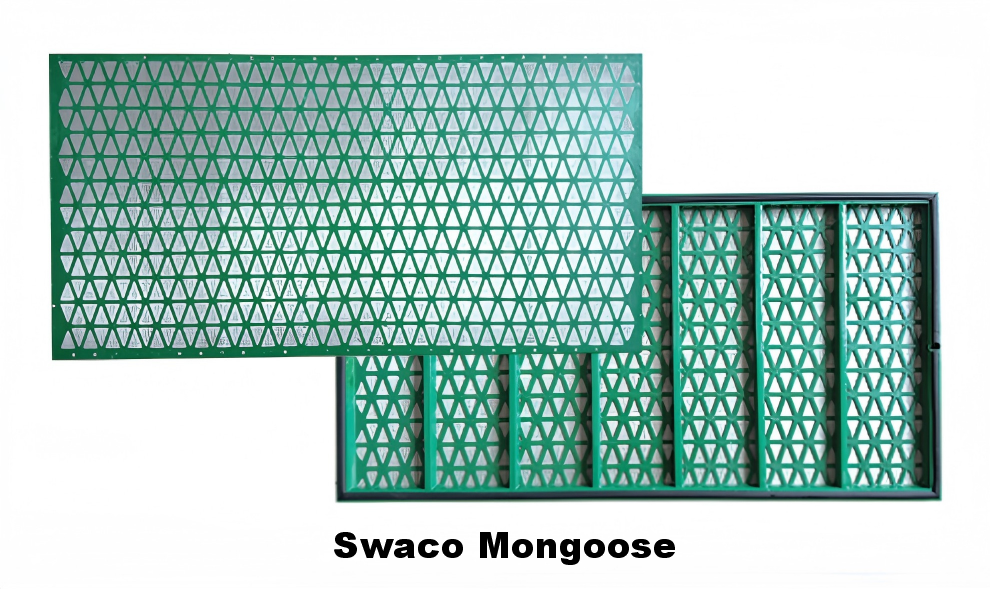

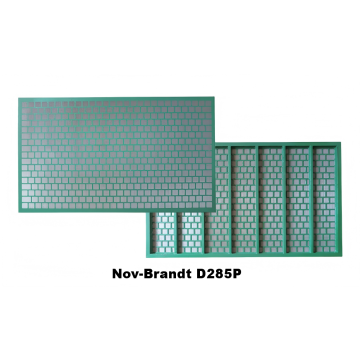

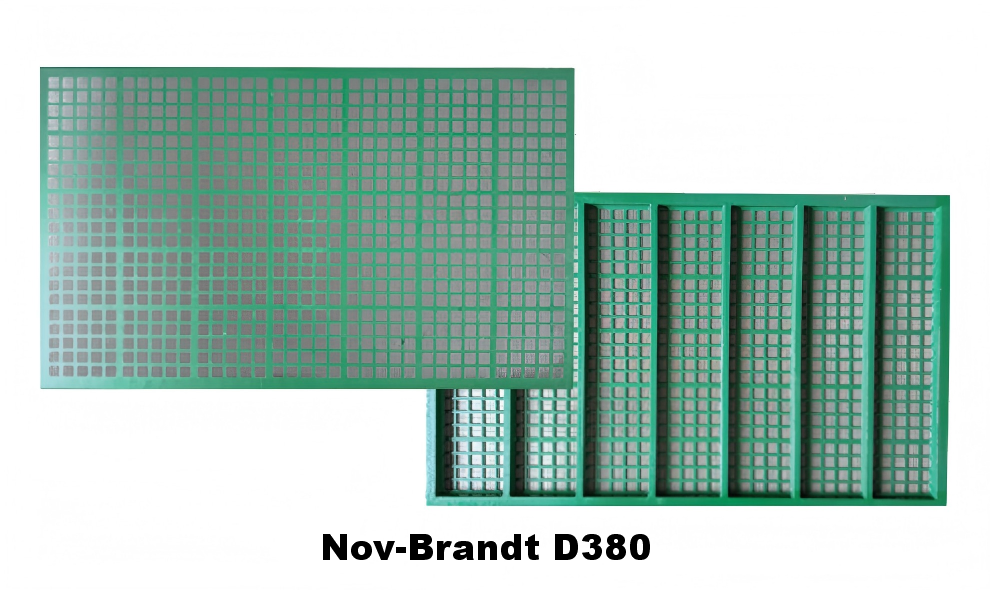

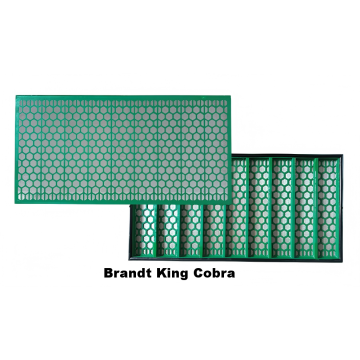

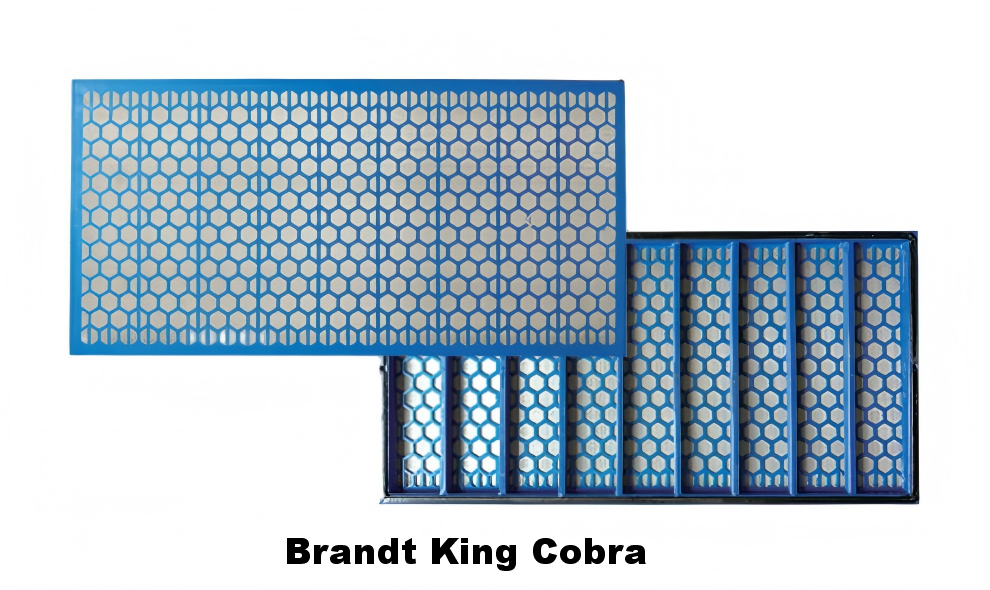

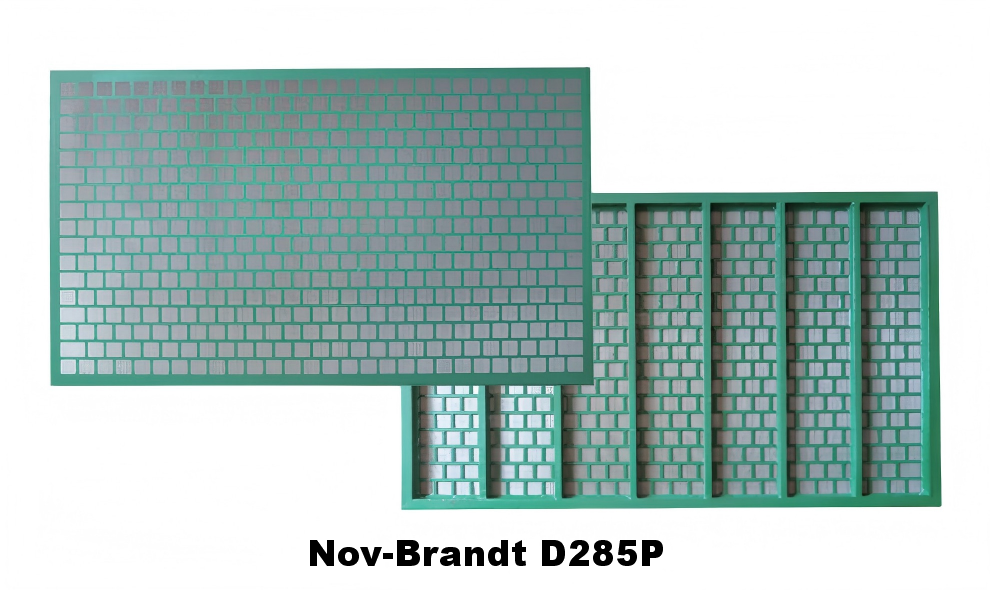

Steel frame screen are a type of shaker screen that feature a steel frame around the mesh or screen. The frame provides additional support and stability to the screen, making it more durable and resistant to damage or warping. Steel frame screens are commonly used in drilling operations where the drilling fluid contains heavier or larger solid particles that require a stronger and more robust screen to remove them. They are also often used in high-volume drilling operations where frequent screen replacement is needed, as they can be quickly and easily replaced without requiring extensive downtime. Steel frame screens are available in a variety of mesh sizes and configurations to suit different drilling requirements.

Steel frame screens are designed with two or three layers of 304 or 316 stainless steel wire cloth, coupled with a steel backing plate and frame for optimal durability and filtration efficiency. The varied mesh and hole sizes contribute to superior filtering performance.

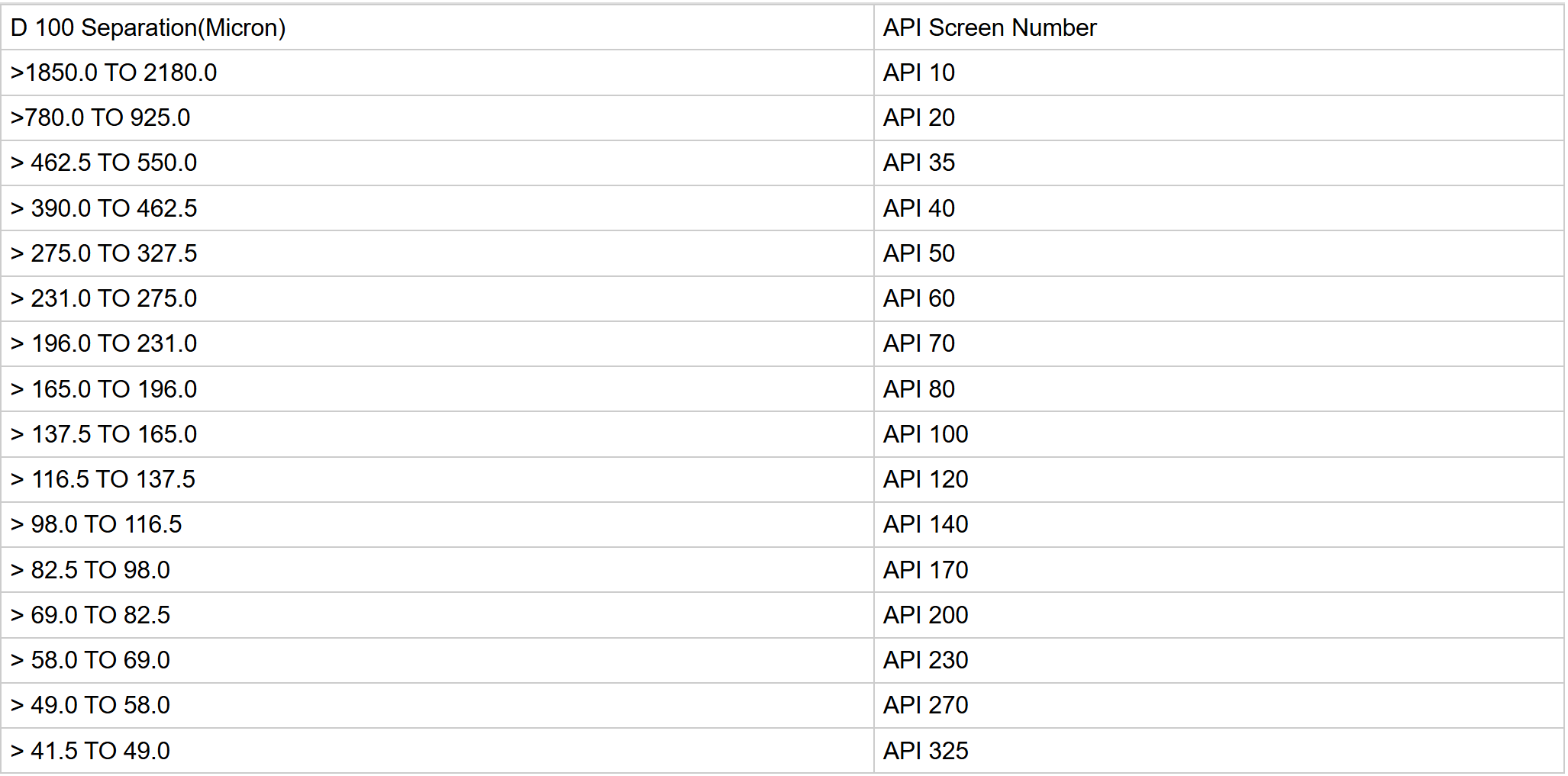

Enhanced strength is achieved through a robust steel frame at the bottom, reinforced by supporting bars and tensioned screen cloth. This combination significantly bolsters screen integrity and longevity, ensuring effective filtration across mesh sizes ranging from 20 to 325.

To mitigate damage, the screen is divided into independent segments, preventing excessive expansion and localized wear. Special rubber plugs facilitate easy repairs, minimizing downtime and replacement costs while maximizing efficiency.

Advantage
