Home > Products > Wellhead Tool > Wellhead Elevators > Y Series Slip Type Elevators





View the big picture

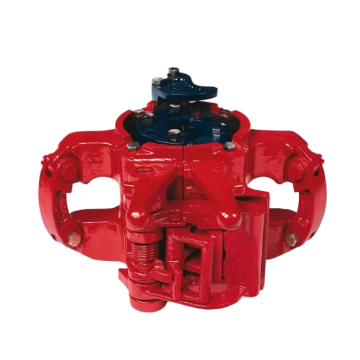

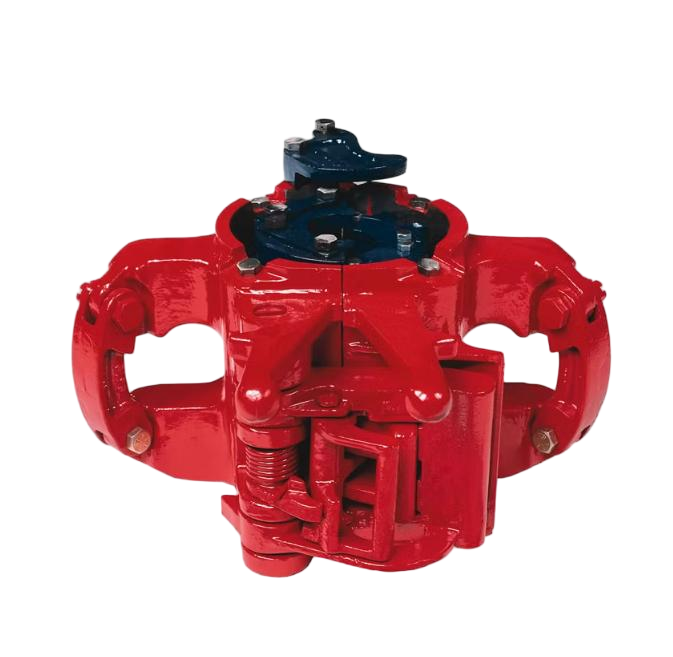

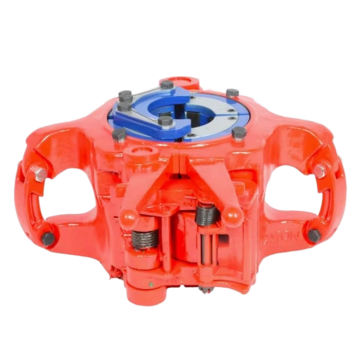

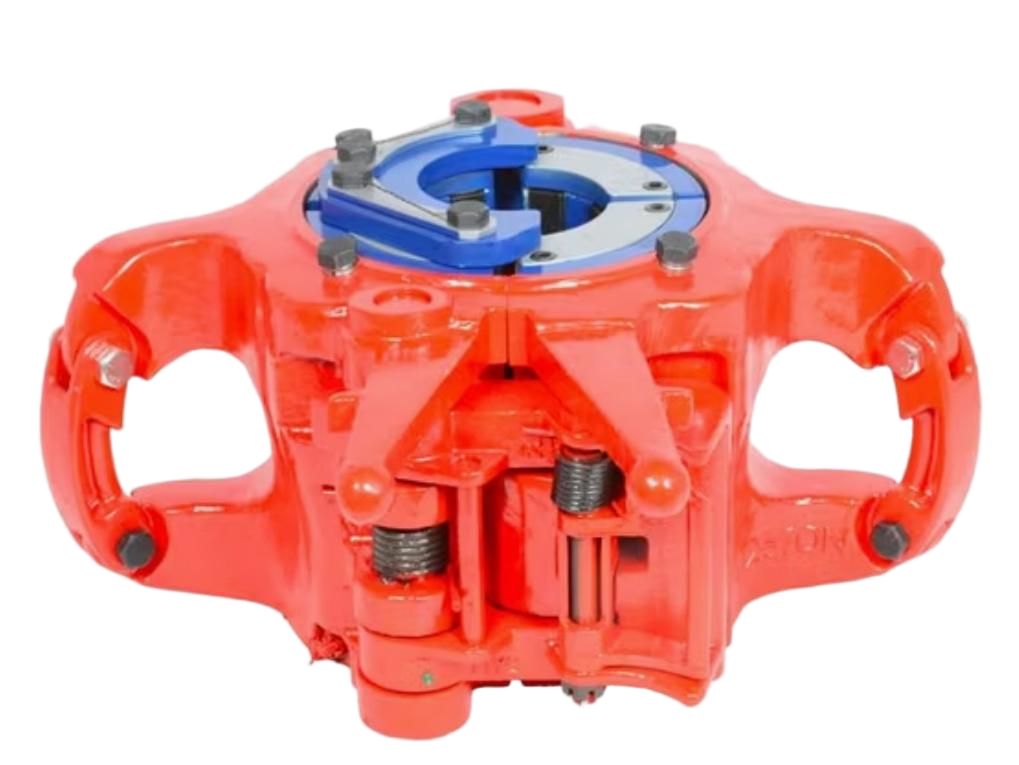

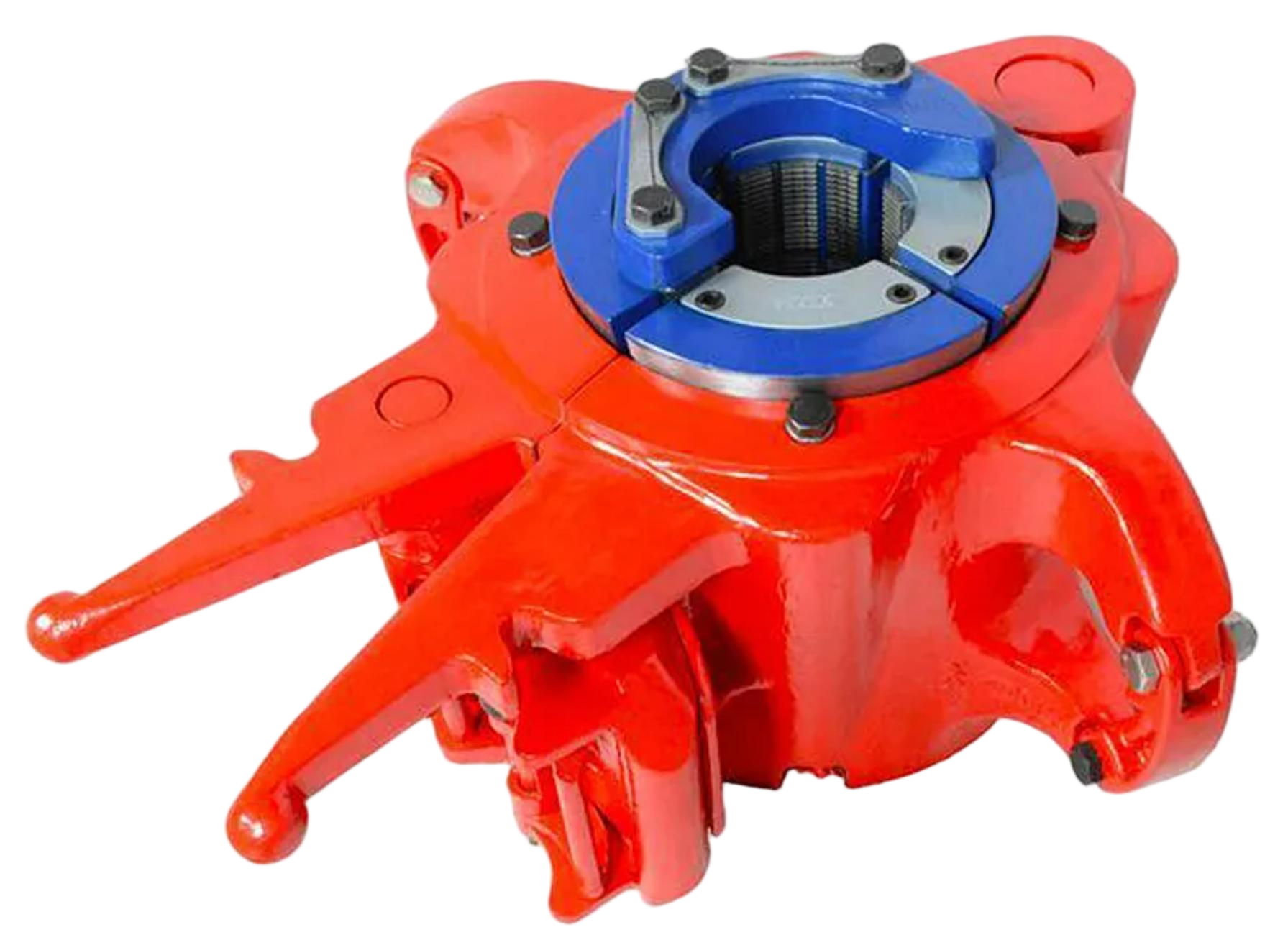

Y Series Slip Type Elevators

Name: API Model Y Series Hyc Slip Type Elevators
Uploaded: 2025-09-08T09:24:23+08:00
Description: Y series slip type elevators are indispendable tools in handling and hoisting drill pipes, casings and tubings in oil

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW,FAS
Min. Order:	1 Set/Sets

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: Oilfield Wellhead Tools API 8A Y Slip Tye Elevators

Brand: RYANSTER

Additional Info

Packaging: Wooden Casse

Transportation: Ocean,Land

Certificate: API 8A

HS Code: 8431431000

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW,FAS

Product Description

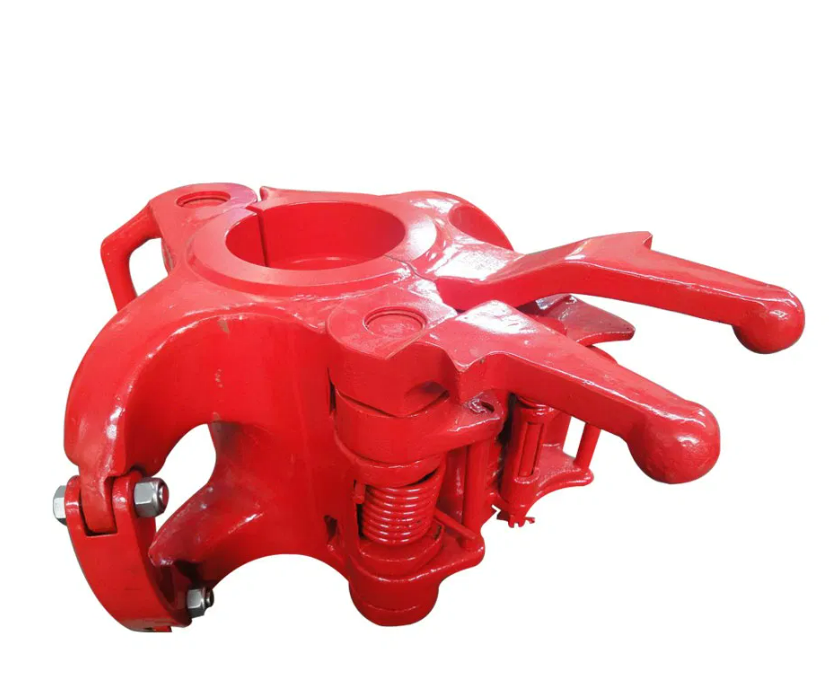

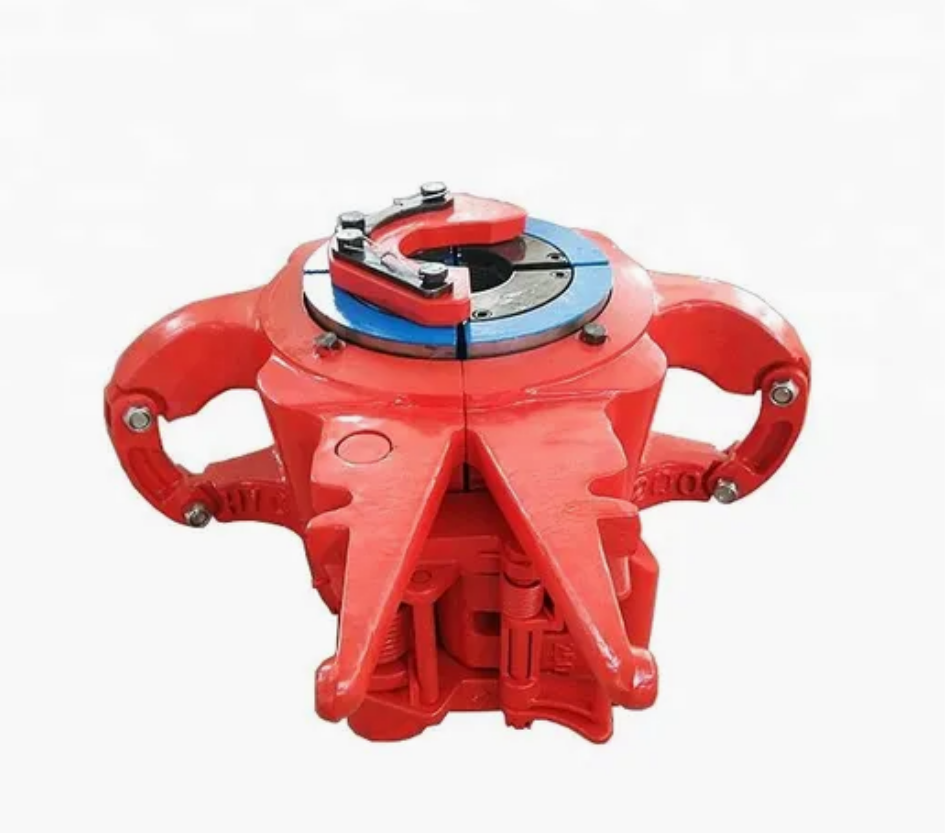

Y series slip type elevators are indispendable tools in handling and hoisting drill pipes, casings and tubings in oil drilling and well tripping in/out of drilling and workover opperation . It's especially suitable for hoisting tubing with ingegral joint, integral joint casing and electric submersible pump column.

Through installing manual or powered device on the basis of Y series elevator, Y series self-locking tubing elevator s realize slips floating or pressing in elevators manually or automatically.

They are designed and manufactured according to API 8C specification for drilling and production hoisting equipment.

The Y series Slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil
drilling and well tripping operation. It's especially suitable for the hoisting of integrated tubing sub, integral joint casing

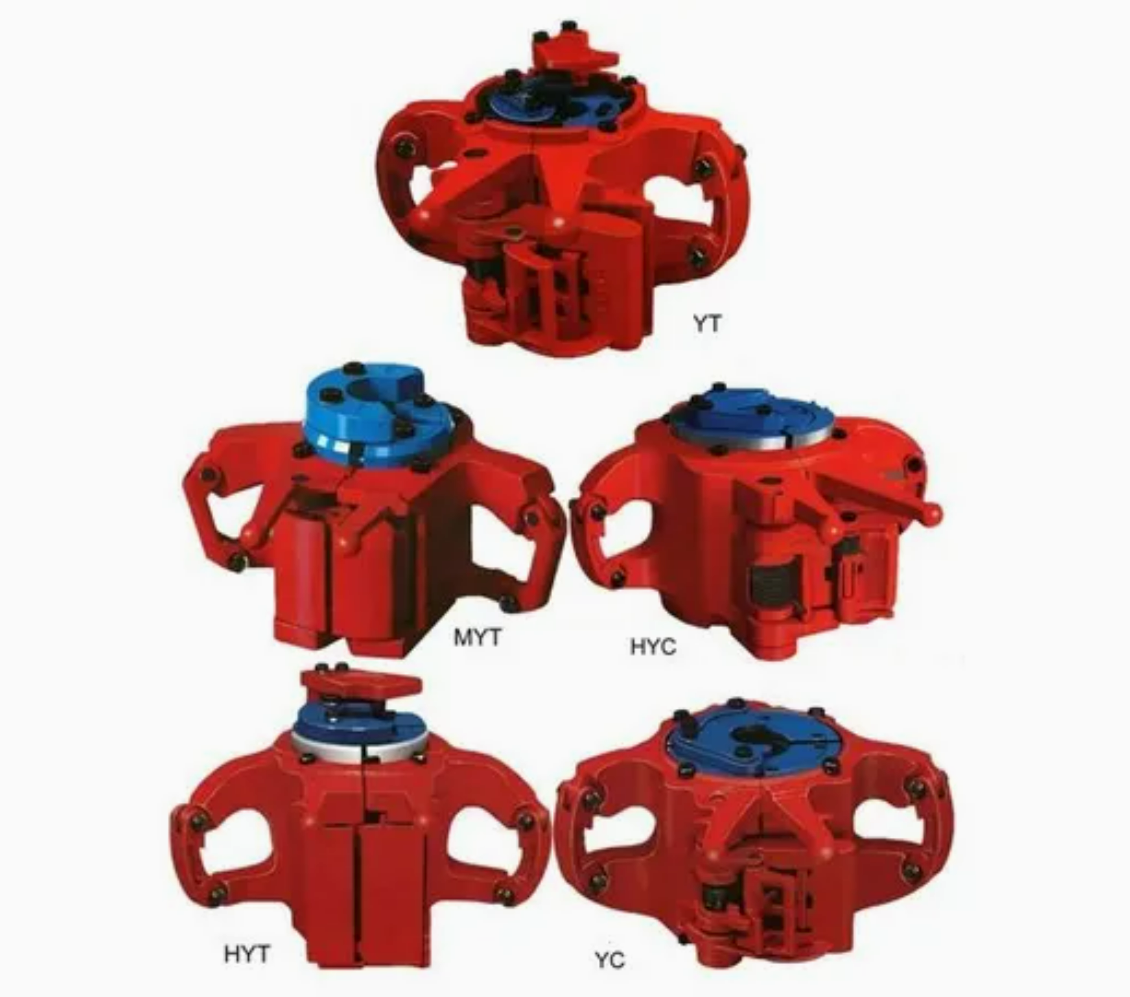

and electric submersible pump column. The slip type manual elevators for tubing (YT, MYT) and casing (YC, HYC, MYC). The elevators hoist a variety of small casing and tubing with the proper size slips and slip setting ring installed. The slips are easily changed. The elevator is designed with two (2) halves of similar weights for good balance and easier opening and closing. A guarded operating latch and an extra handle at the rear of the elevator allow for easier, safer operation. Elevators are equipped with a latch and latch lock combination. To open, pull the latch lock handle out and swing the elevator apart. The latch and latch lock secures automatically when the elevator is closed around the pipe. The load causes the slips to set when the elevator is raised, pushing down on the slip setting ring.

Product Categories : Wellhead Tool > Wellhead Elevators
