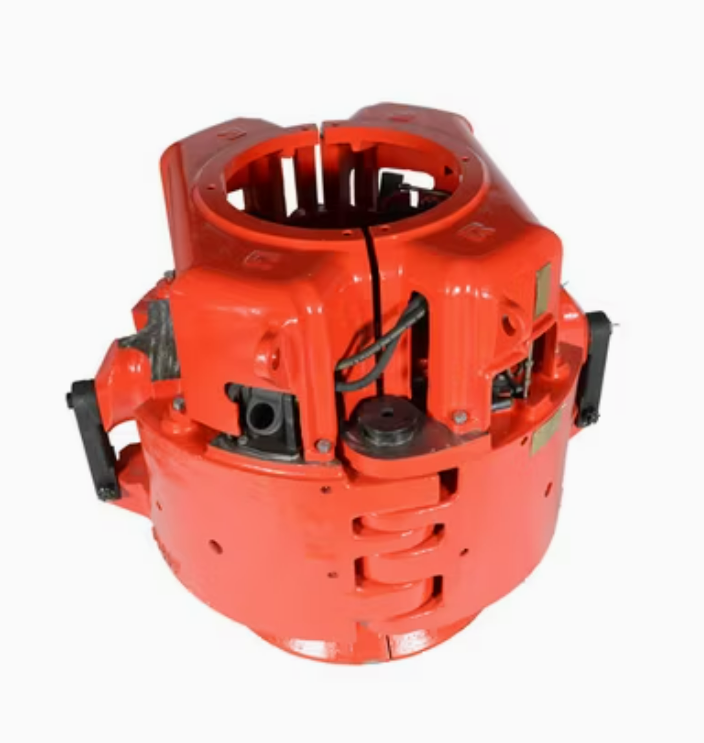

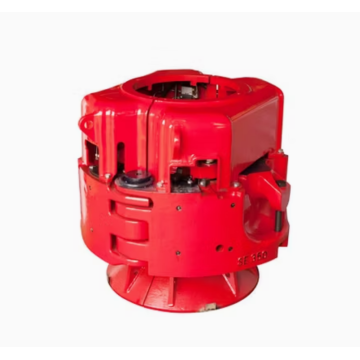

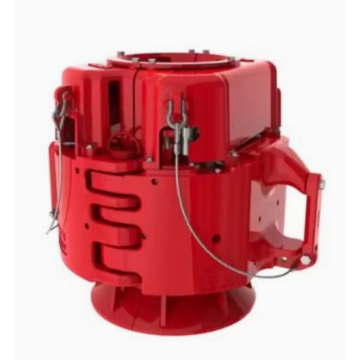

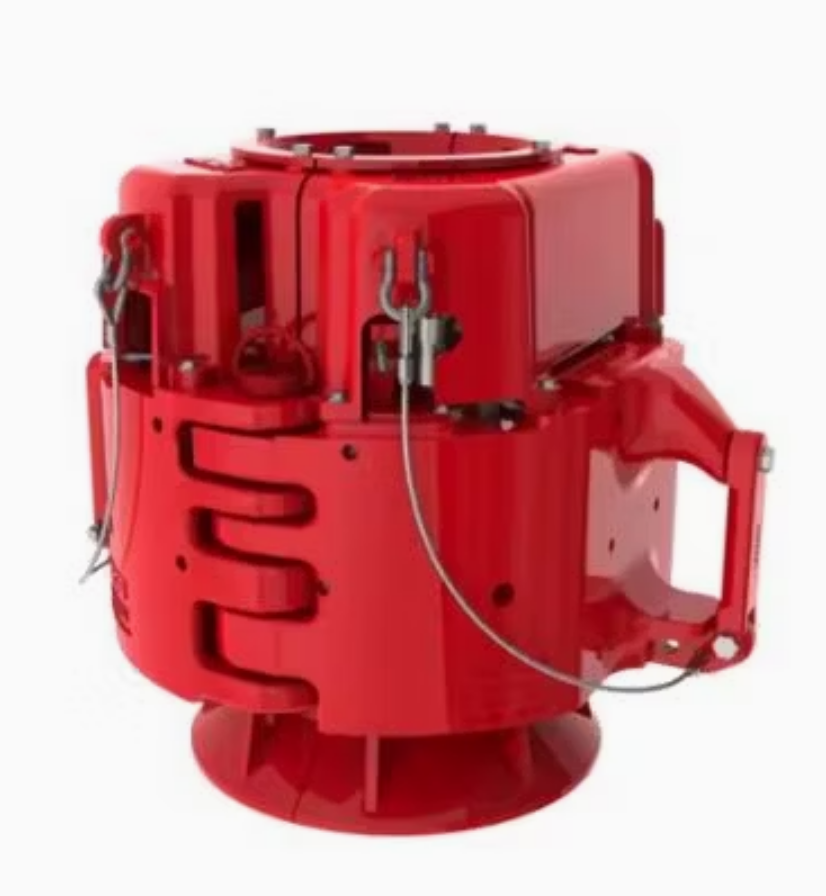

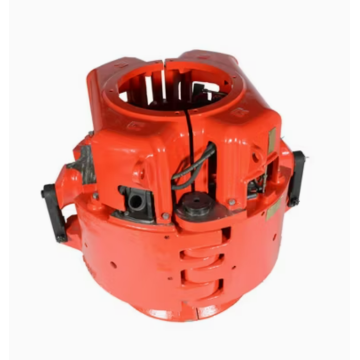

Our Type SE Slip Type Elevators/Spiders are state-of-the-art pneumatic mechanized tools, expertly crafted to handle casings ranging from 2.3/8" to 20" in diameter. These cutting-edge products are designed to significantly reduce the labor intensity for workers, elevate the precision and quality of casing handling, while simultaneously enhancing safety and operational efficiency. Each product is meticulously designed and manufactured in strict accordance with the esteemed API Spec 8C/8A Standard, 'Specification for Drilling and Production Hoisting Equipment,' embodying superior reliability and performance.

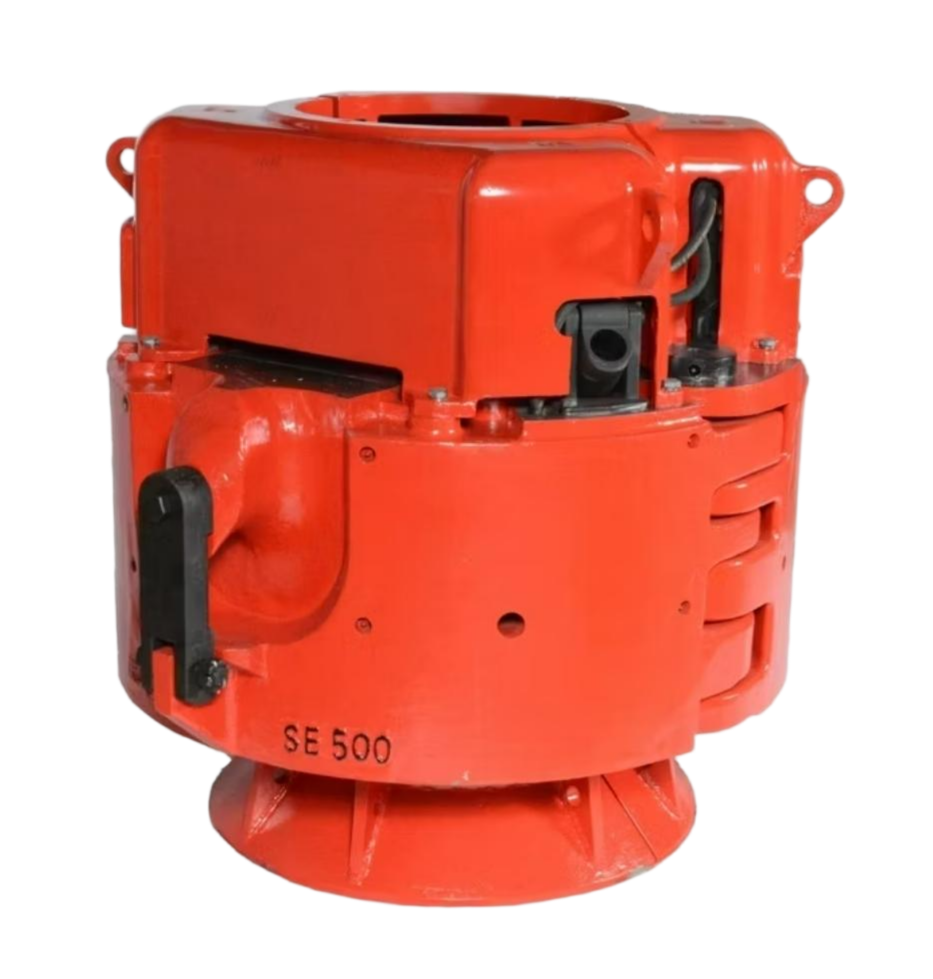

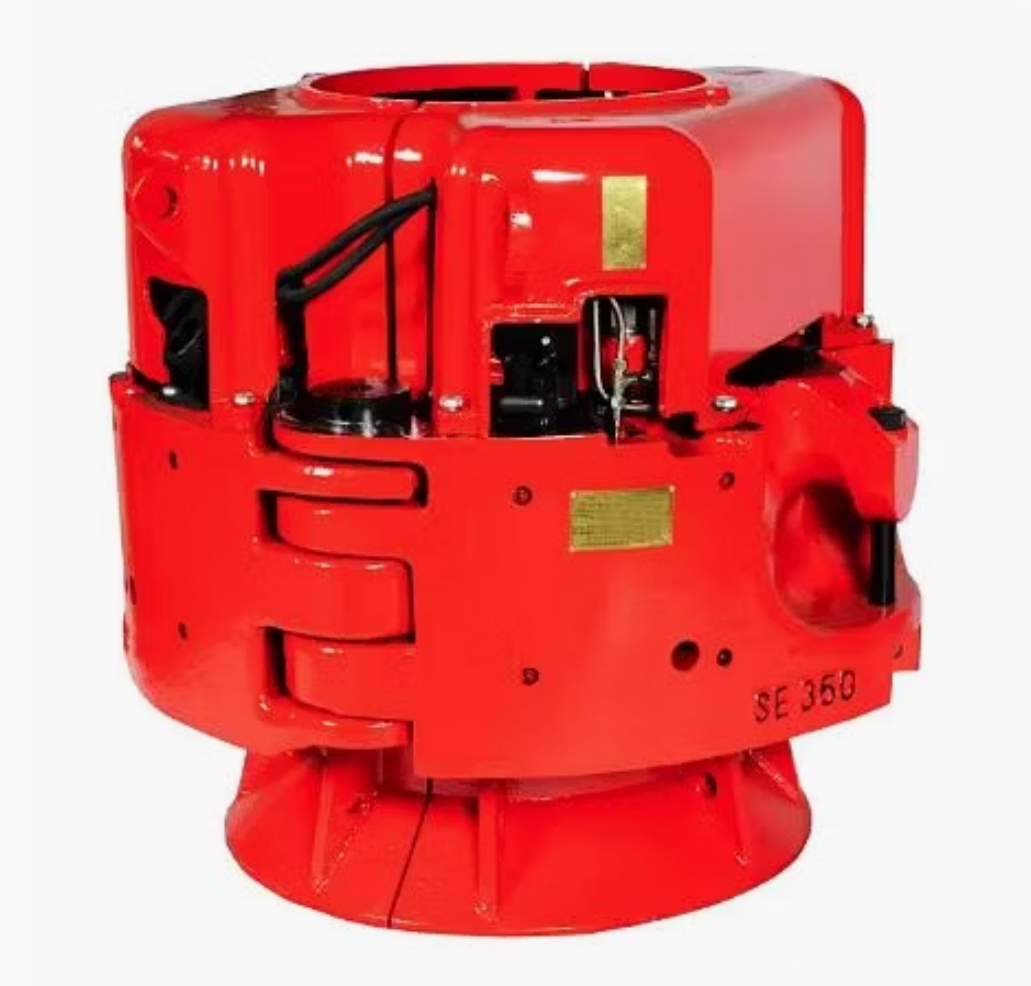

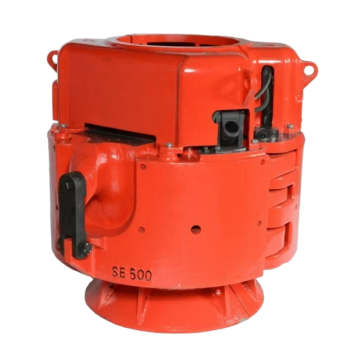

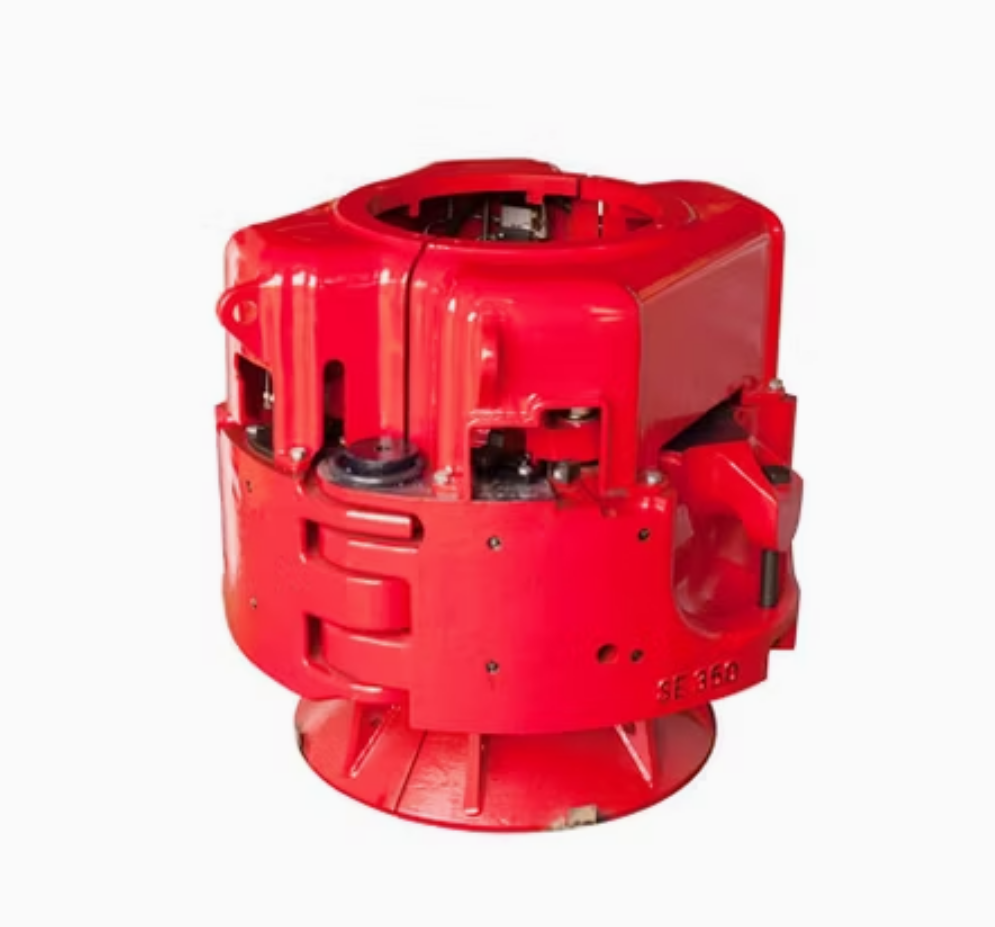

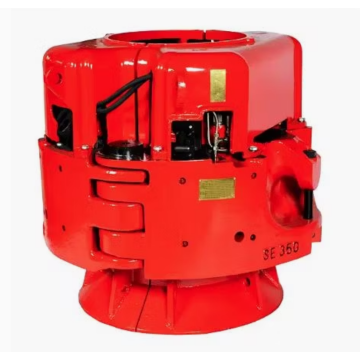

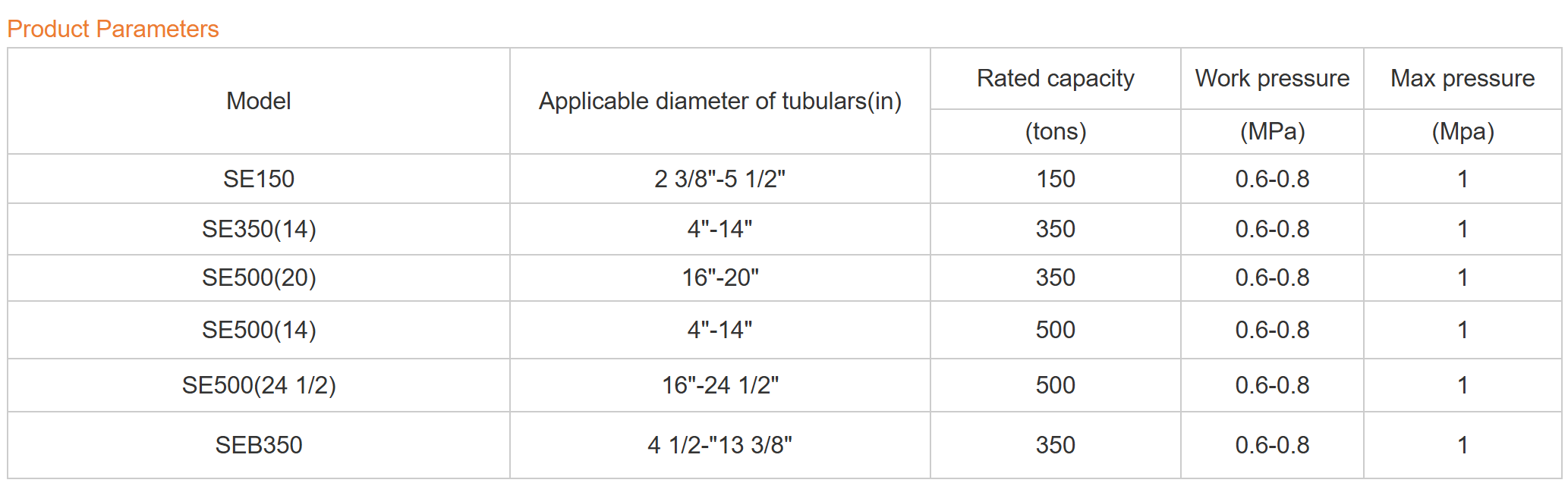

The 350 and 500 and 750Ton Casing Elevator/Spider Units are pneumatically operated power tools, capable of handing casing sizes from 4.1/2 to 24.1/2 inches, with string loads of 3150KN for the 350 ton unit, 4500KN for the 500 ton unit, 6672KN for the 750 ton unit.

These units have been refined and incorporate such engineering features as air powered operation with safety latch, and four independent slips, as standard equipment.

The main bodies can be dressed as a casing elevator or spider. The elevator consists of an upper unit using a bell guide and bottom guide. The lower unit is dressed as a Spider with a top guide that centers the Spider over the master bushing.

The elevator is attached to the traveling block and hook with 350 or 500 ton standard API links. The Spider locates directly on the pin drive master bushing (27.1/2 MSPC, 37.1/2 and 49.1/2 MPCH), and square drive master bushing (27.1/2 MSS), and will accommodate any other master bushing when used with an Adapter Plate.
