Home > Products > Wellhead Tool > Power Tong > TQ Casing Hydraulic Power Tong





View the big picture

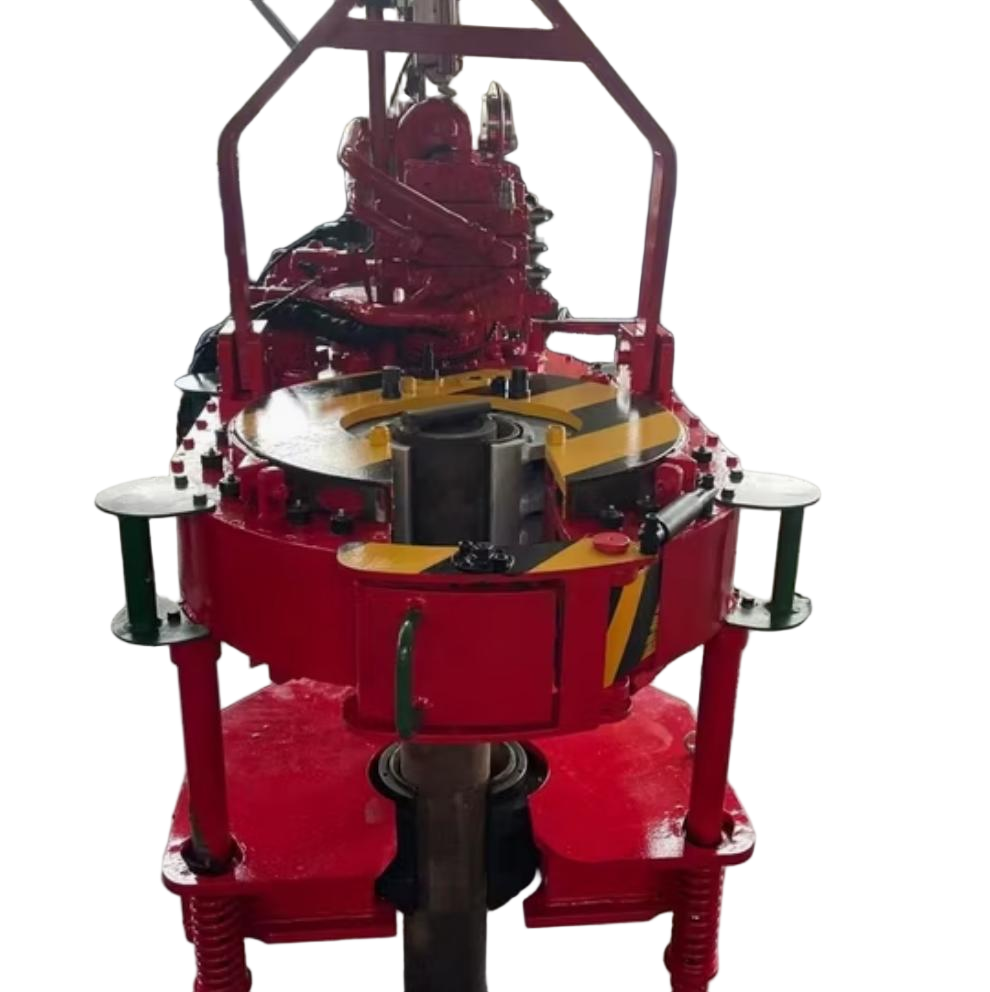

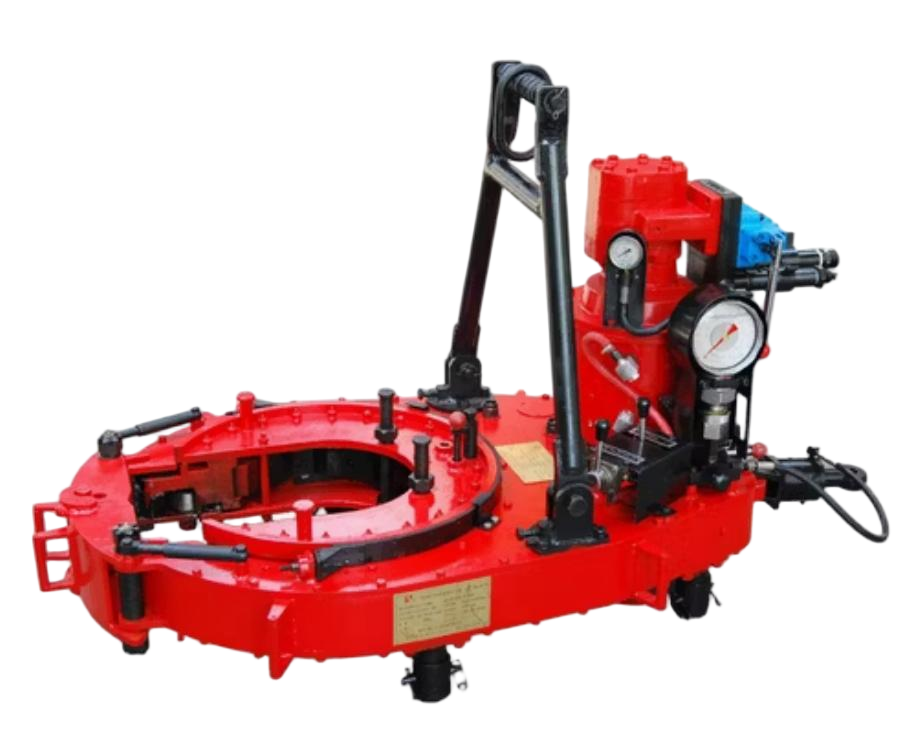

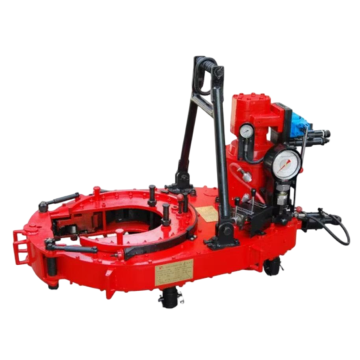

TQ Casing Hydraulic Power Tong

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW,FAS
Min. Order:	1 Set/Sets

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: TQ Series Casing Hydraulic Power Tong

Brand: RYANSTER

Additional Info

Packaging: Wooden Case

Transportation: Ocean,Land

Place of Origin: China

Certificate: API 7K

HS Code: 8431431000

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW,FAS

Product Description

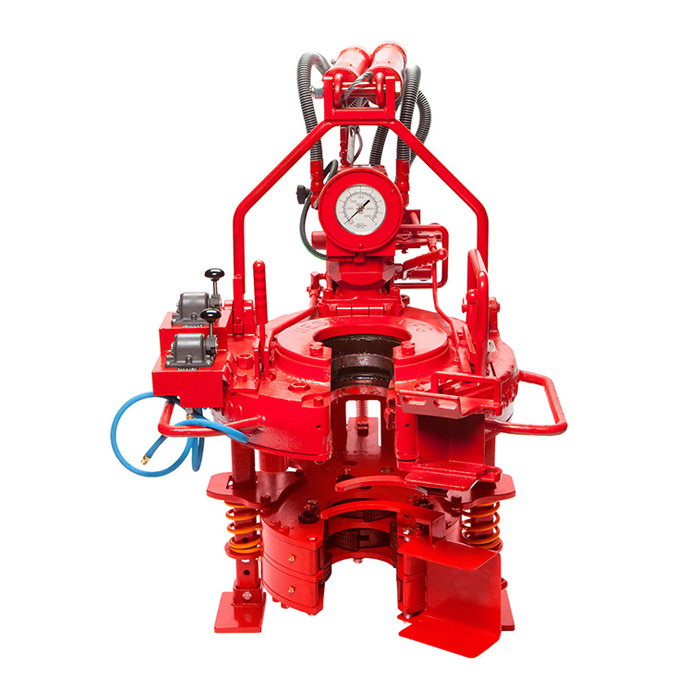

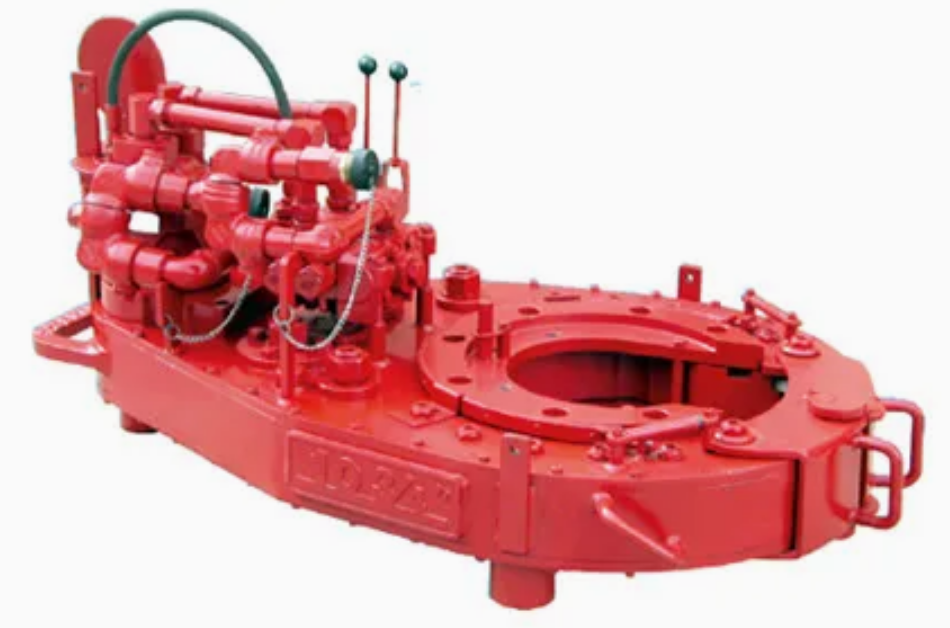

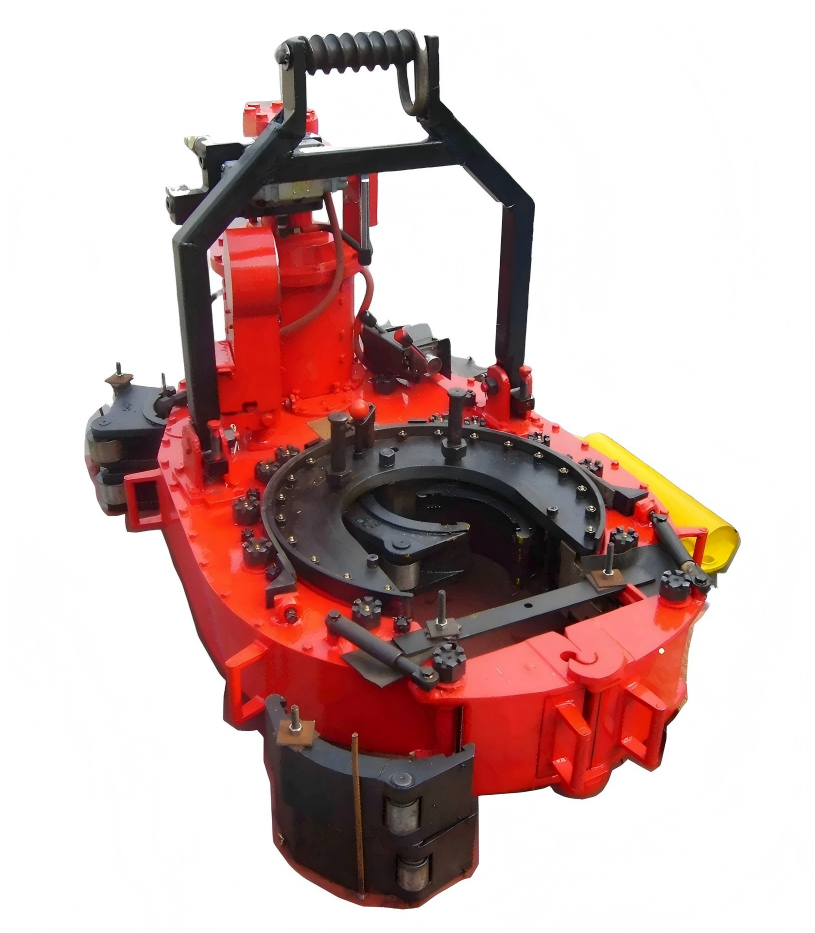

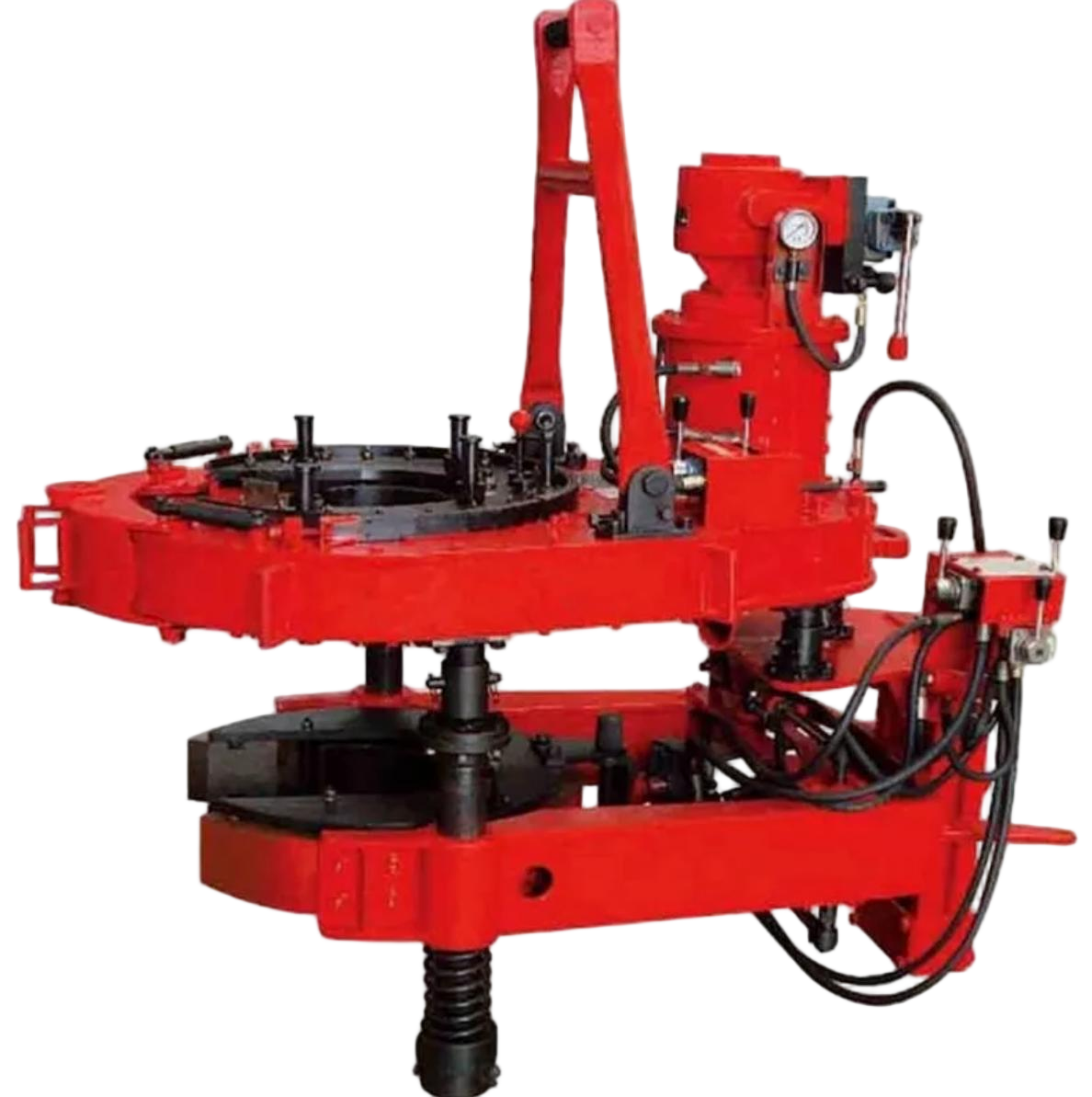

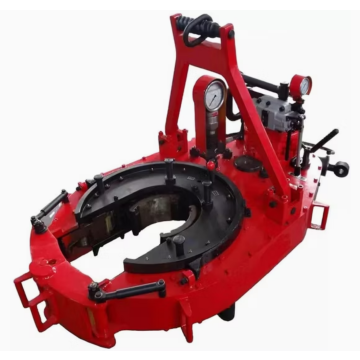

TQ series of casing power tongs are widely applied to making-up operations and breaking-out operations of casings or pipes in oilfield.It has the features such as light and handy structure, high work efficiency and reliable working safety.It can reduce workers' labor intensity and improve the connection qualityof casing screw threads. Tong head is design as open and equipped with advanced swing-type double jaw assembly, which can ensure reliable clamping.This series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure, torque,and rounds.The power tongs are design and manufactured according to API SPEC 7K"Driling and Well Serving Equipment."

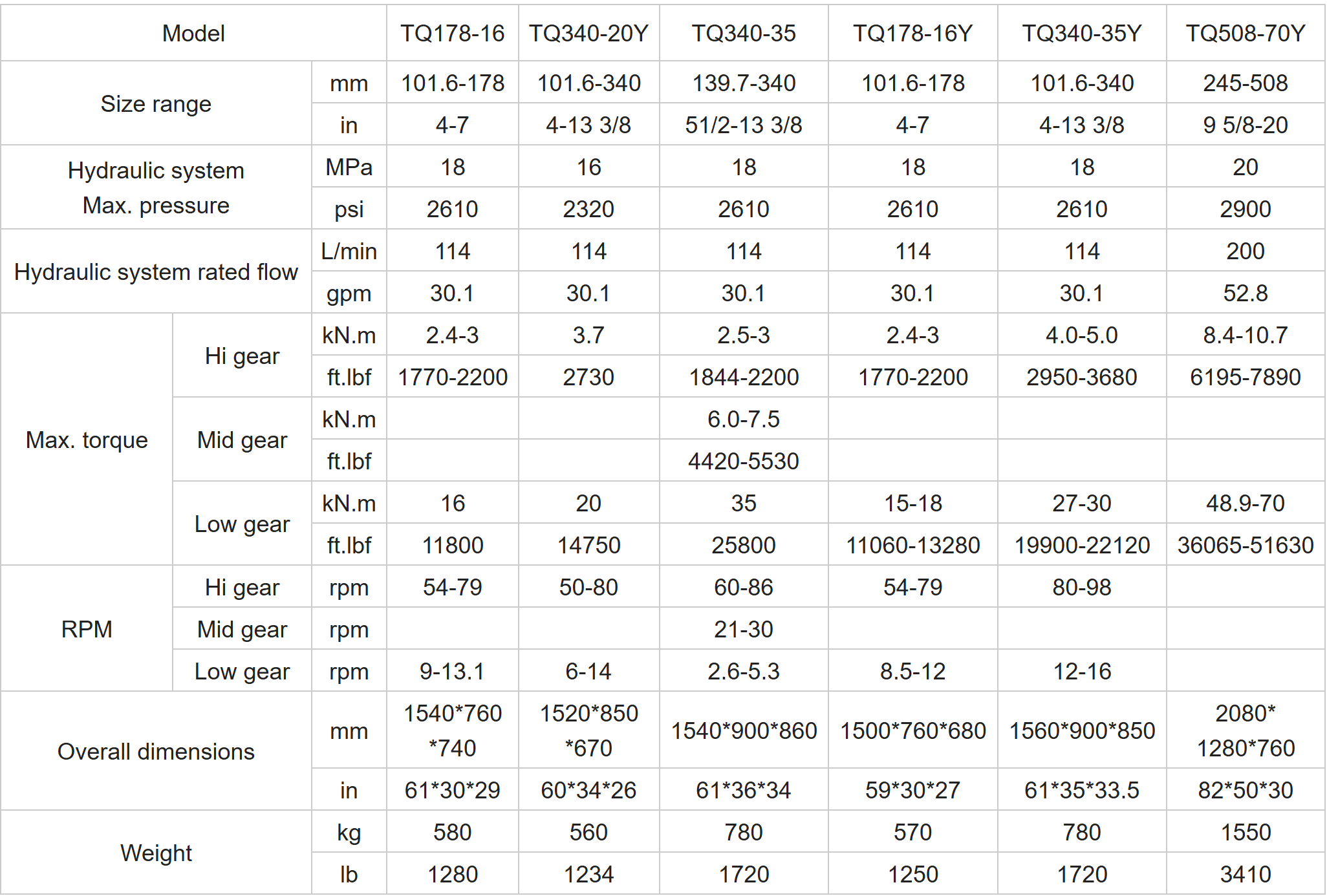

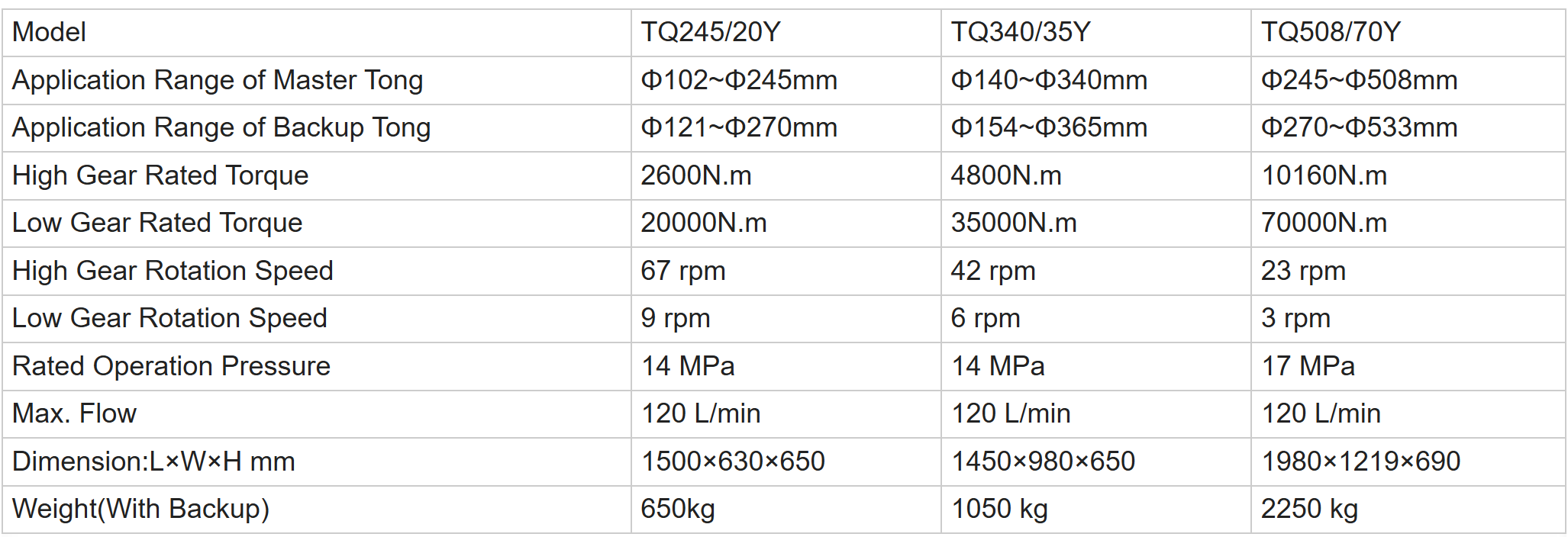

TQ Series Casing Power Tong driven by hydraulic motor, can hold the Φ140~Φ340 (51/2~133/8in) pipe string; it can hold Φ340~Φ406(133 by replacing the ring gear and jaw plate /8~16in) of the pipe column, the pipe column of Φ101~Φ140 (4~51/2in) is clamped by the additional jaw plate. Casing power clamp arm 813 (32in), torque value is 35kN·m (25000 ft·lb).

Our Type TQ Casing Power Tongs stand as the pinnacle of efficiency and reliability in the world of drilling operations. These innovative tools are expertly crafted to facilitate seamless make-up and break-out of tools during critical drilling processes. Featuring an 'open' type tong head system, they provide the flexibility to effortlessly clamp and release the casing as needed. Designed for maximum compatibility, this versatile series can be seamlessly integrated with computer control systems. Perfectly suited for pipe diameters ranging from 4 inches to 13.3/8 inches. Trust in our power tongs for unmatched performance and durability.

Product Categories : Wellhead Tool > Power Tong
