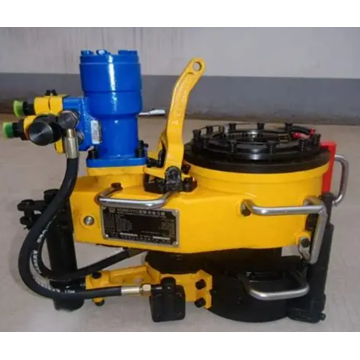

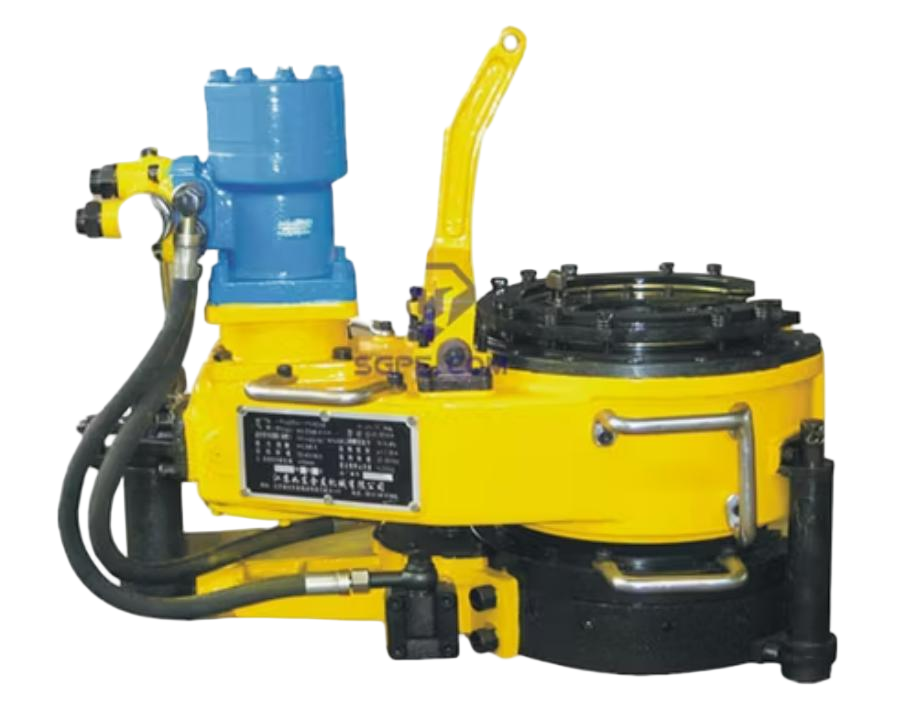

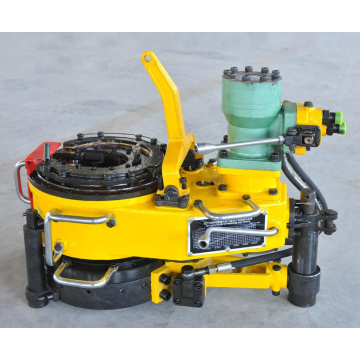

XQ Series Tubing Power Tong

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW,FAS
Min. Order:	1 Set/Sets

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: API 7K XQ Series Hydraulic Tubing Power Tong

Brand: RYANSTER

Additional Info

Packaging: Wooden Case

Transportation: Ocean,Land

Place of Origin: China

Certificate: API 7K

HS Code: 8431431000

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW,FAS

Product Description

Products description:

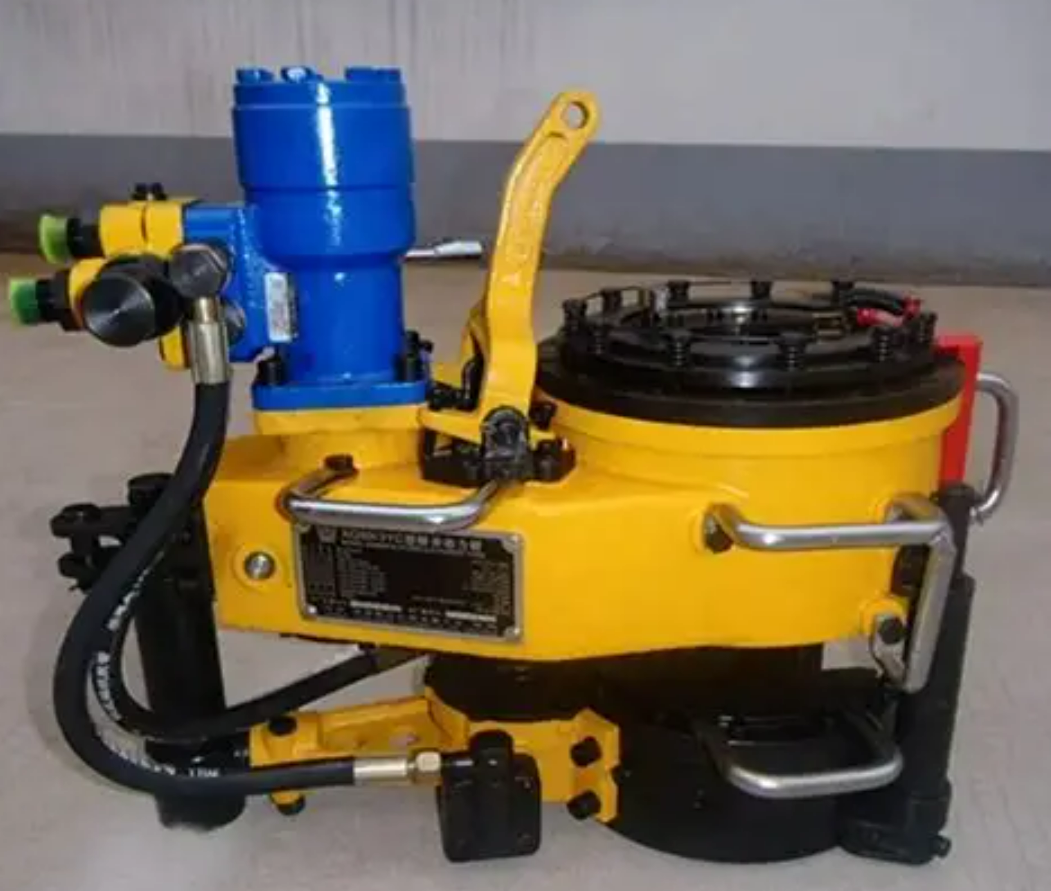

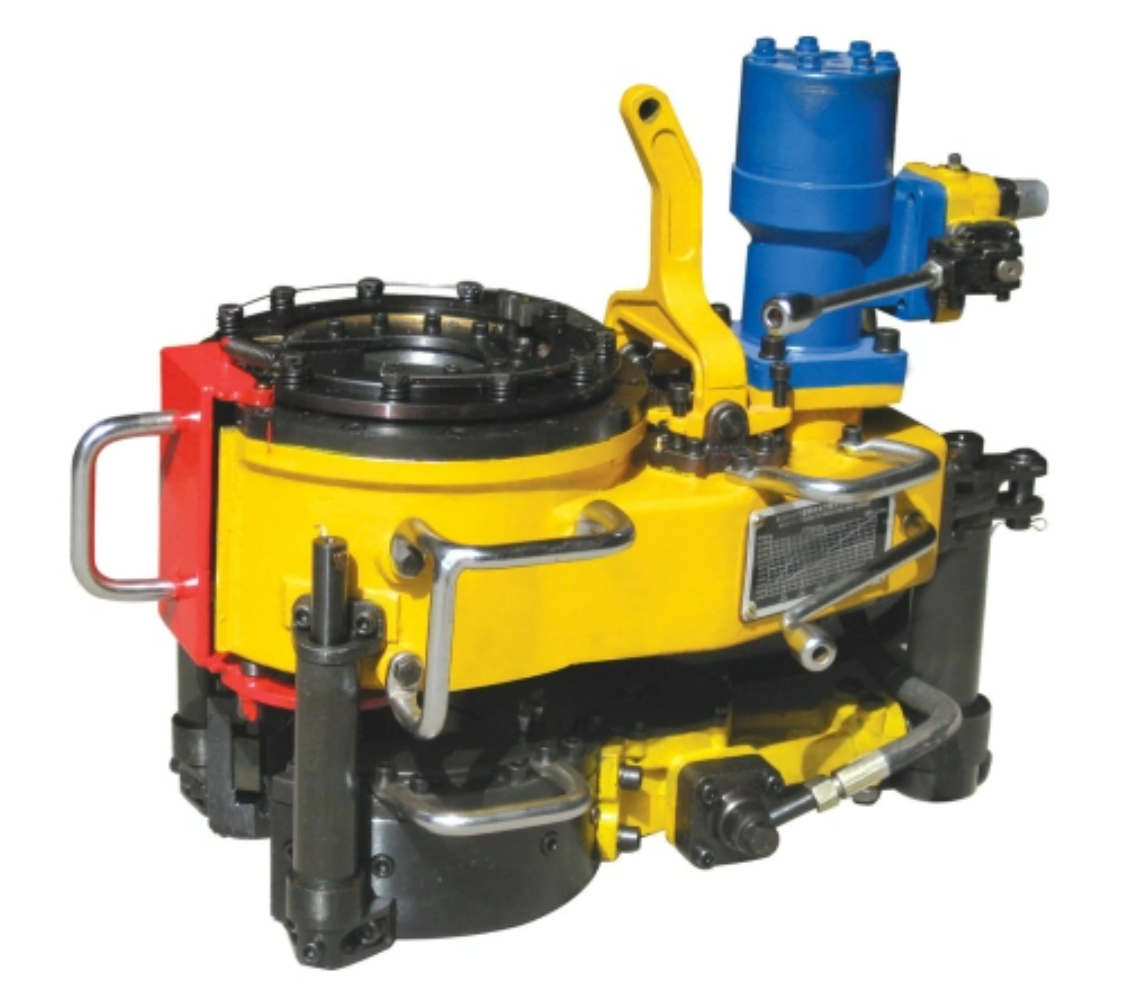

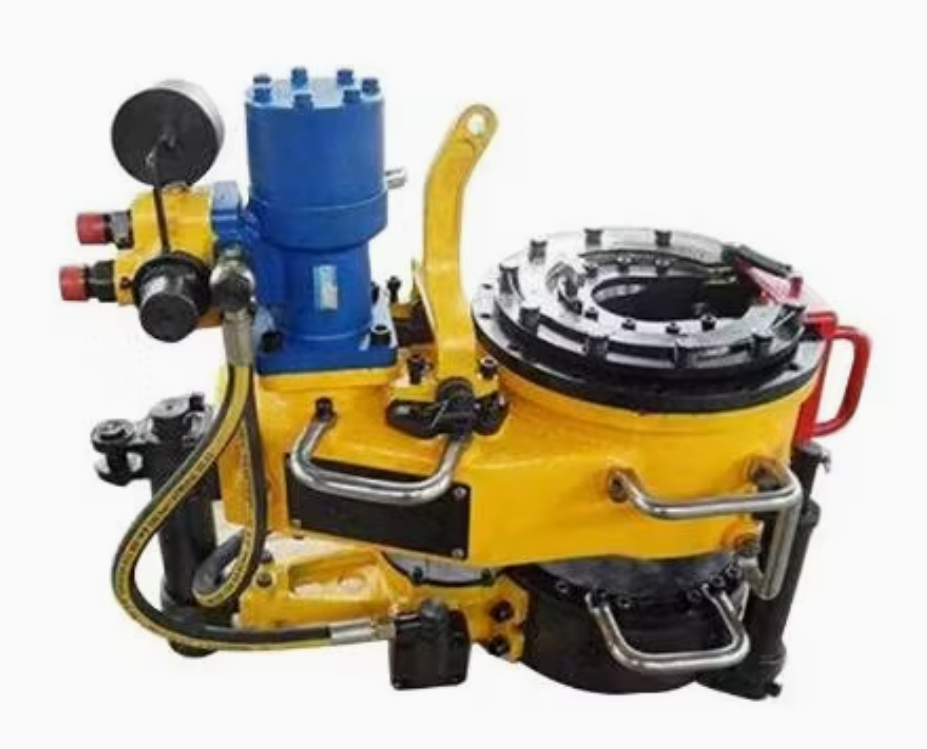

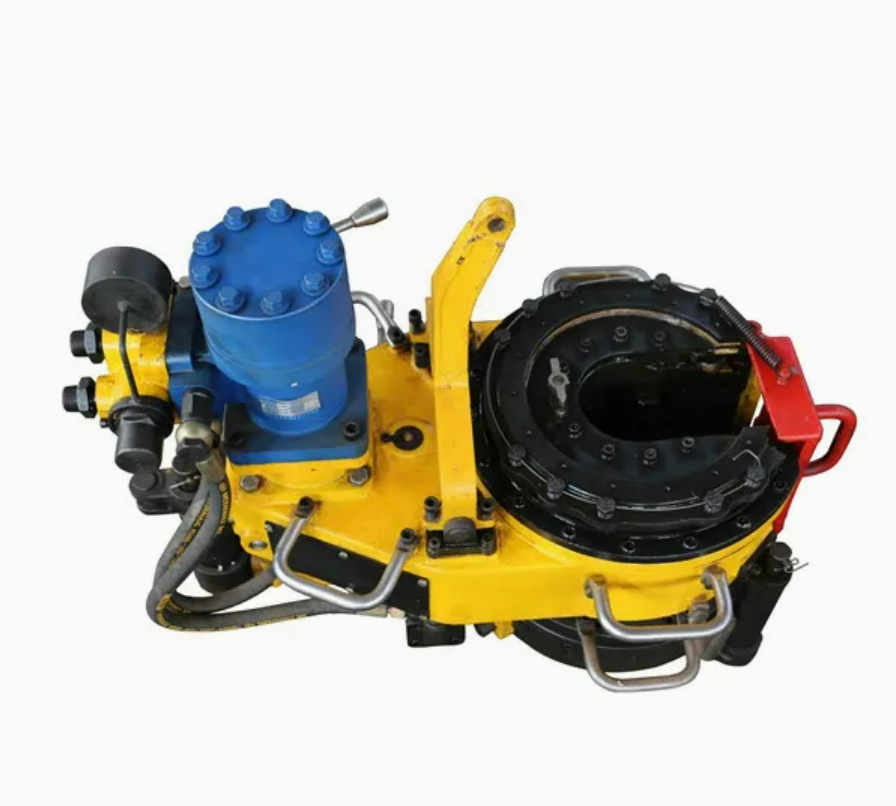

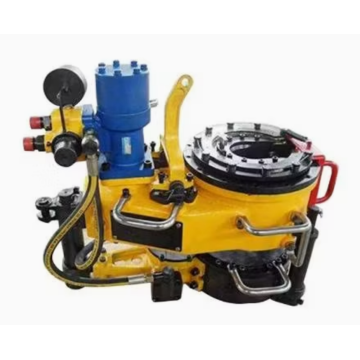

XQ series Hydraulic Power Tong is used for make-up/break-out sucker rod, tubing, small casing and small drill pipe in workover service operations.

1. Operate the manual reversing valve, master and backup work synchronously.

2. It can equip bilateral sequence control apparatus that is specialized in tubing tong according to the need, so it can realize that the backup tong clamps the tubing tong in advance of master tong and it is more reliable and safer to make up or break out tubing.

3. Both the master tongs and backup tongs adopt two-way clamping mechanism of the internal curved surface roller grade climbing to clamp the tubing. Their structure are simple but reliable.

4. The master tongs are equipped with automatic safety door for safety protection.

With torque control system.

1. Type planetary claws clamp

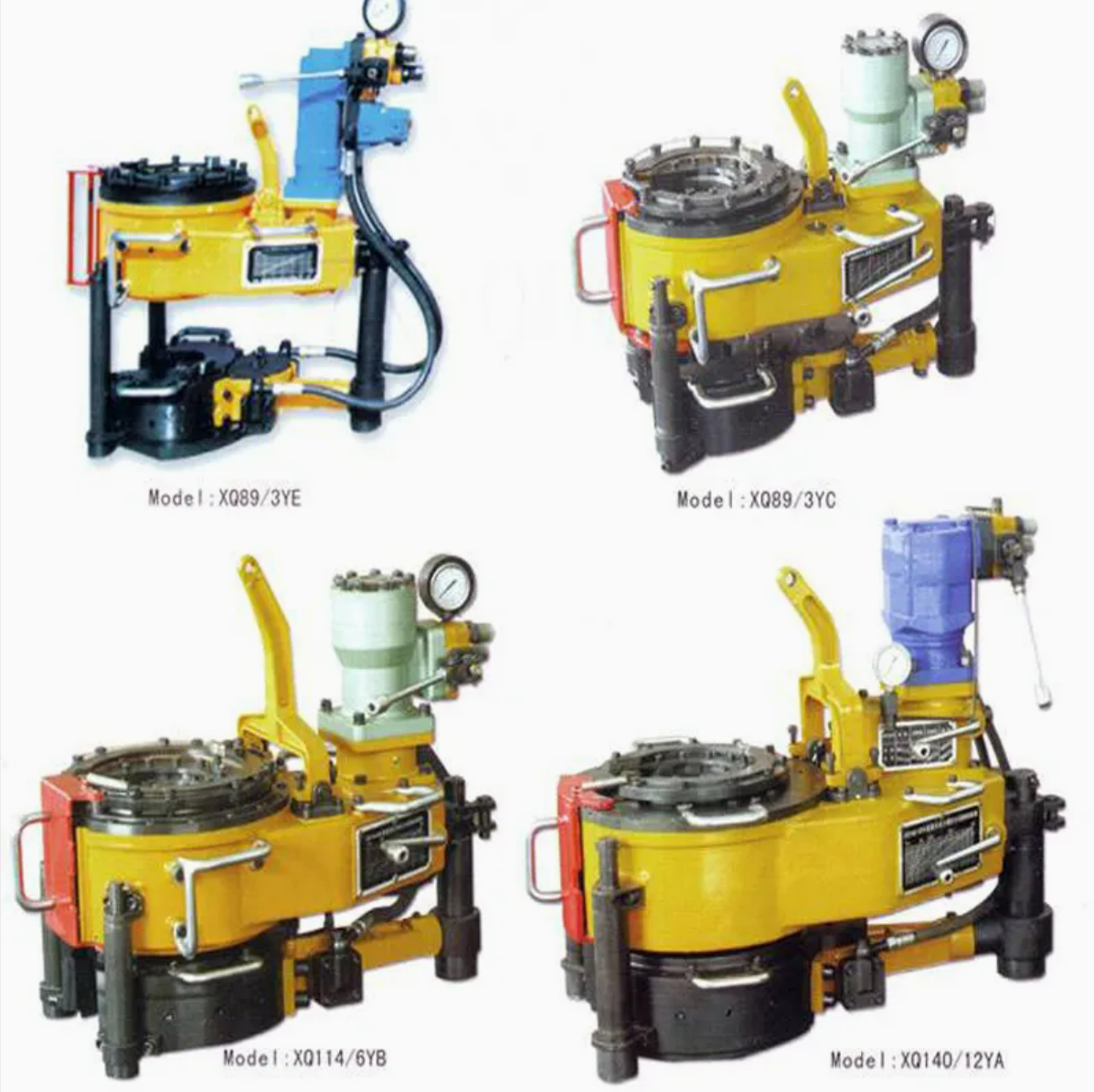

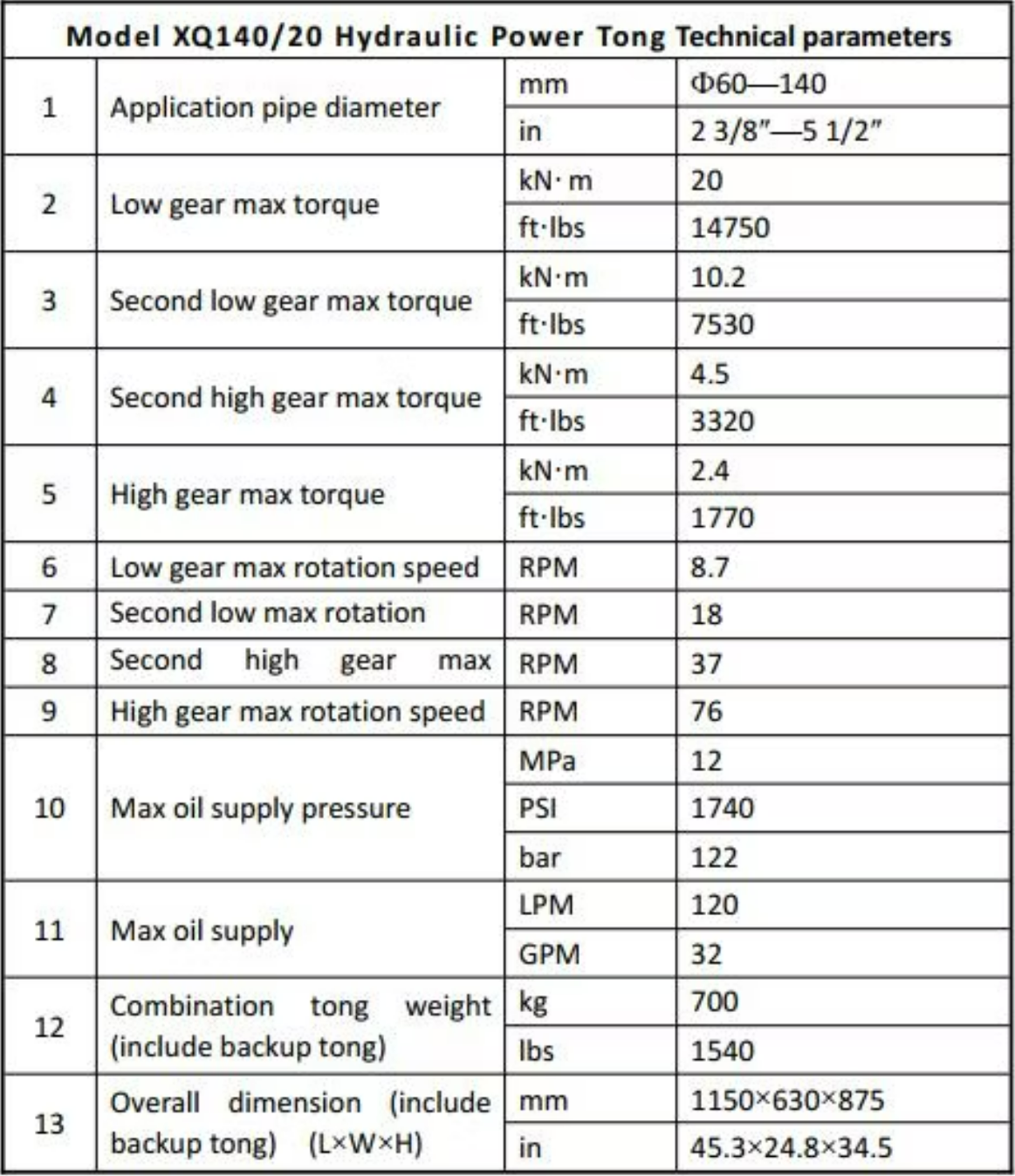

2. Type XQ140/20Y, XQ140/12X, XQ114/6YB, XQ89/3C available.
Pipe size ranges from 60mm to 140mm. Max torque ranges from 3 to 20 kn*m
3. Adopt the braking belt, reliable braking
4. Application different range of tongs.
5. The backup tong can clamp the tubing body
6. Torque control system may be equipped according to customer's request

Product Categories : Wellhead Tool > Power Tong
